2015 CEDARAPIDS MVP450X Photo Details
|
|
2015 CEDARAPIDS MVP450X

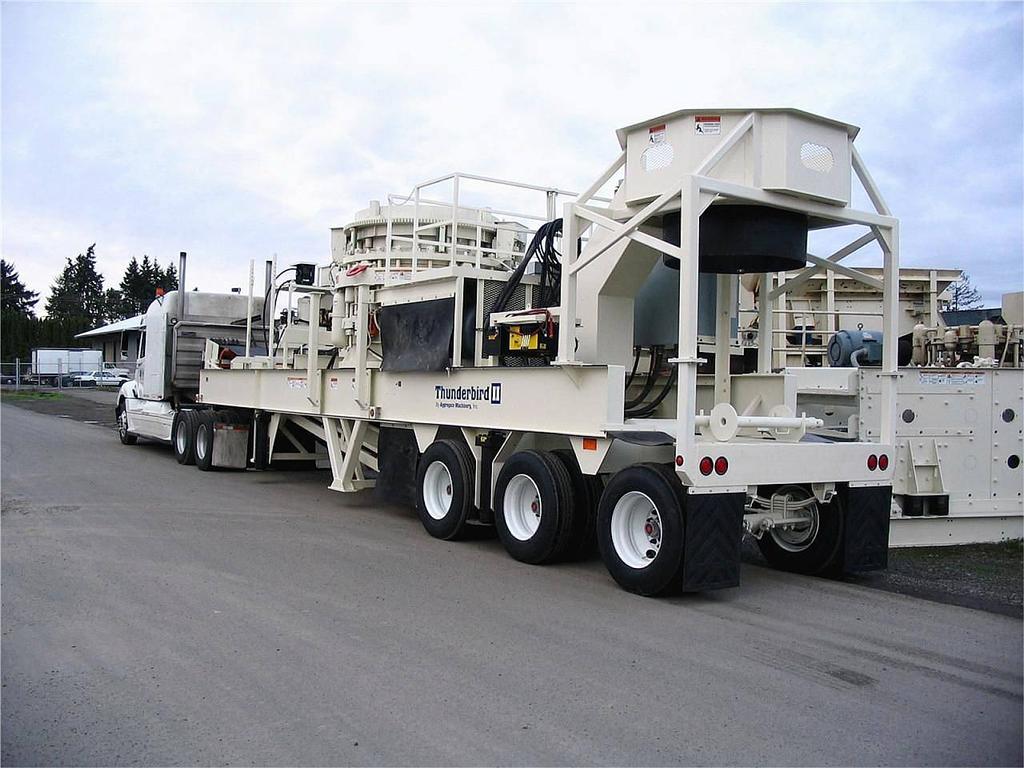

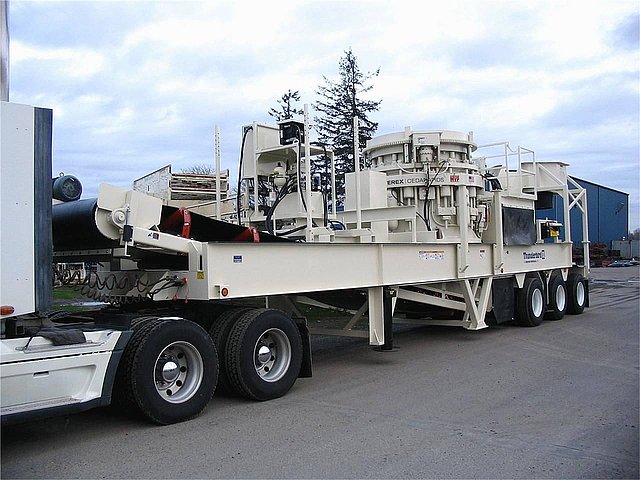

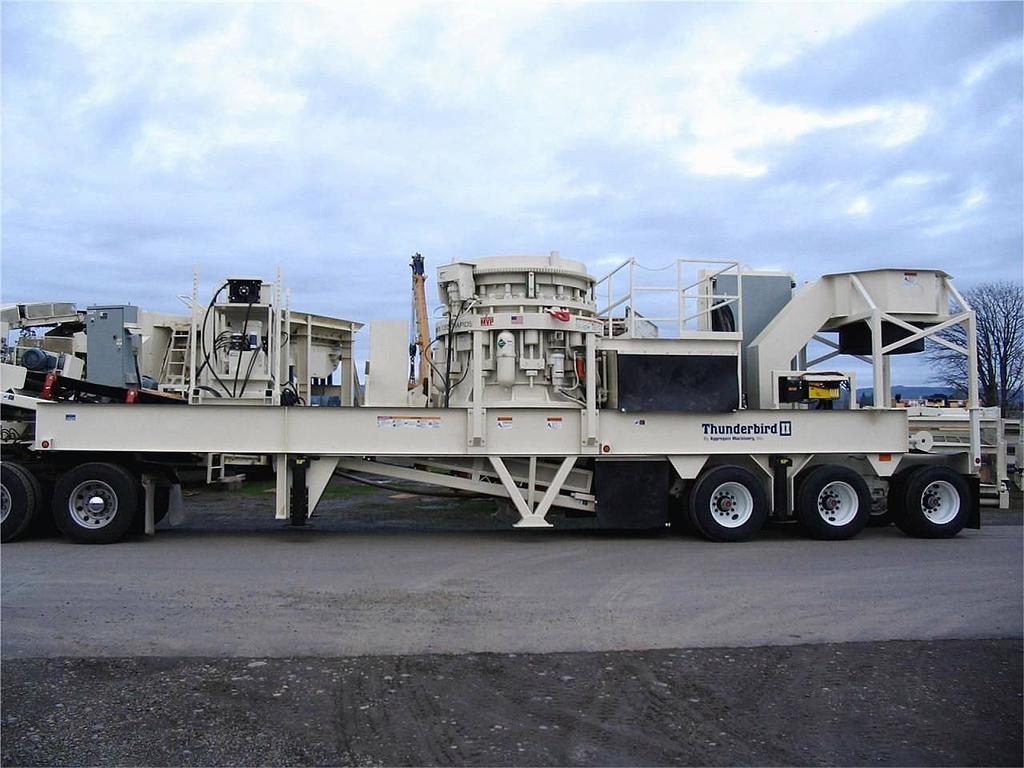

| Triple axle trailer, switch gear, 48 under crusher conveyor, hyd. Legs carrier straight beam trailer frame. Triple axle hutch triple spring, equalized suspension twelve wheels, 11.00 x 22.5 tires. Air brake system and travel lights. Four standard leg hydraulic lift and leveling system. Includes 12vdc power unit with individual control valves and plant plumbing. Folding catwalks along both sides of crusher w/ ground access ladder. Built in overflow chute. This is a larger feed basket that is supported over the rotating head of the crusher by an adjustable leg structure attached to the lower part of the crusher body. This allows a head choke feed condition to the crusher. Under crusher conveyor 48 xtilde27 x 20 hp under crusher end delivery conveyor. Under crusher receiving hopper with skirting. Three ply 330 belting with 1/4 x 1/16 covers. Dodge shaft mounted gear reducer. Standard nema frame 1800 rpm, tefc motor. CEDARAPIDS/eljay mvp 450 rollercone crusher heavy-duty cast steel ba... |
