2015 CEDARAPIDS 6X16 Photo Details
|

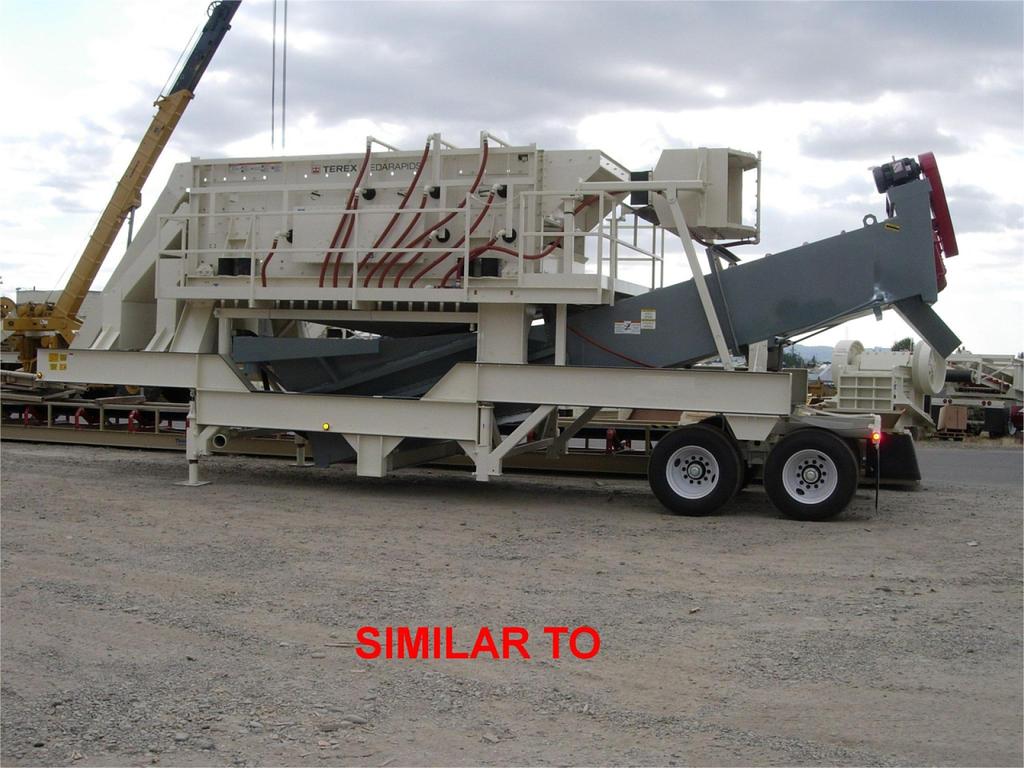

2015 CEDARAPIDS 6X16
| Portable chassis made using heavy-duty i-beam construction with four cribbing support legs with two manual landing jacks for easy truck removal. Chassis includes a tandem axle suspension, eight (8) 11:00 x 22.5 tires, 5th wheel, air brakes on two axles, mud flaps and tail lights. Reconditioned CEDARAPIDS 6 x 16 (fsg6163-32) triple deck horizontal screen s/n 48639 adjustable stroke, stroke length, and speed huckbolted (cold rivet) 1/4 thick side plate design 5/16 laminated reinforcing plates crowned deck frame screen back plates screen cloth tension bars rubber deck support strips discharge lips with 1/4 thick ars liners bolt on feed box coil spring suspension with rubber surge snubbers three-shaft vibrator mechanism with high strength tapered steel spindles forged alloy crown-shaved steel gears six 160 mm spherical, self-aligning, anti-friction roller bearings with splash type oil lubrication system single v-be |
