2015 AMI 3613BFH Photo Details
|
2015 AMI 3613BFH
$71,880.00

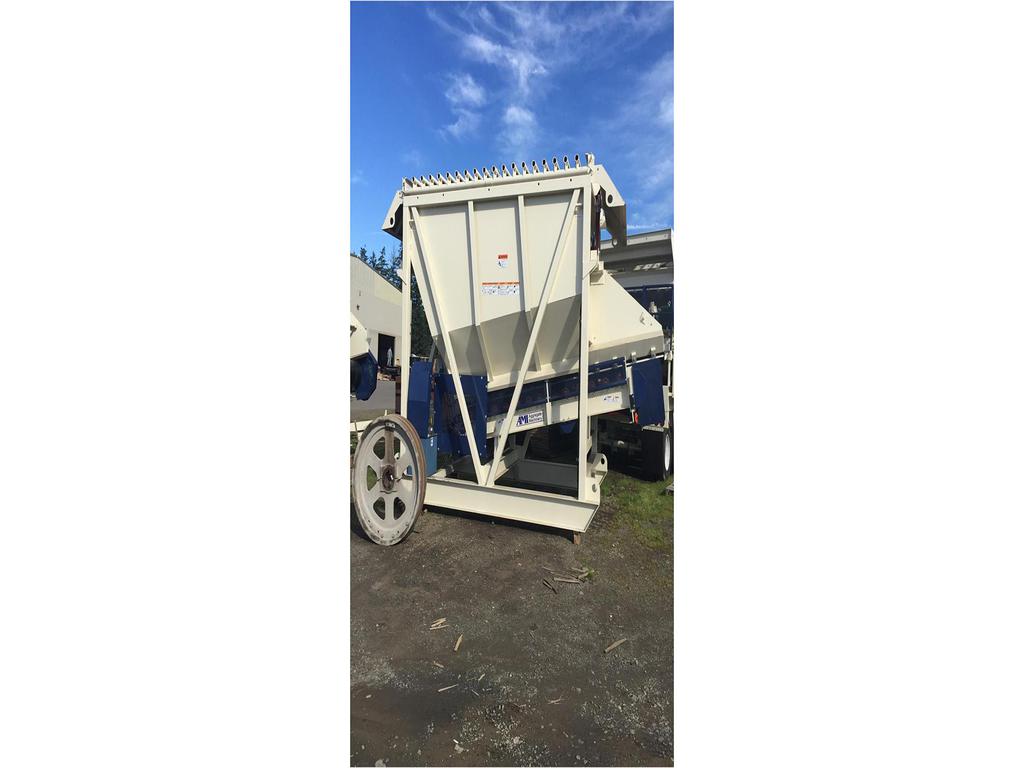

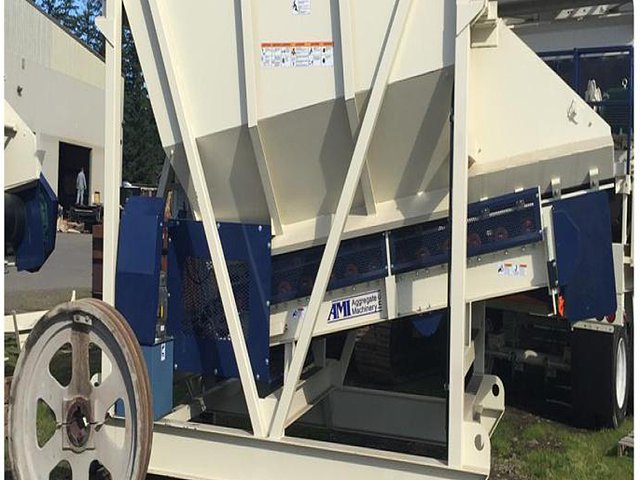

| New skid mounted belt feeder, 36 wide conveyor, adjustable gate, vfd 19 c/y (struck) hopper with reinforced 1/4 ms plate hopper walls. Feed height is approximately 13', feed width is approximately 12'. Lower hopper skirts to belting and adjustable skirt rubber. I-beam skid and supports. 36 wide x 15' channel frame conveyor with approximately 4' discharge height. 10 hp tefc electric drive motor, gearbox, and v-belts. 14 lagged head pulley. 14 wing type tail pulley. Head and tail pulley guards. Flat belt c5 idlers in load area. Three ply belting 1/4 x 1/16 covers and mechanical fasteners. Head end belt scraper. Manual screw type take ups at tail end. Adjustable throat gate to regulate material bed depth on belt. Wing extensions for hopper variable frequency ac drive. Hydraulic tipping grid, monthly rental price: 3500 |
