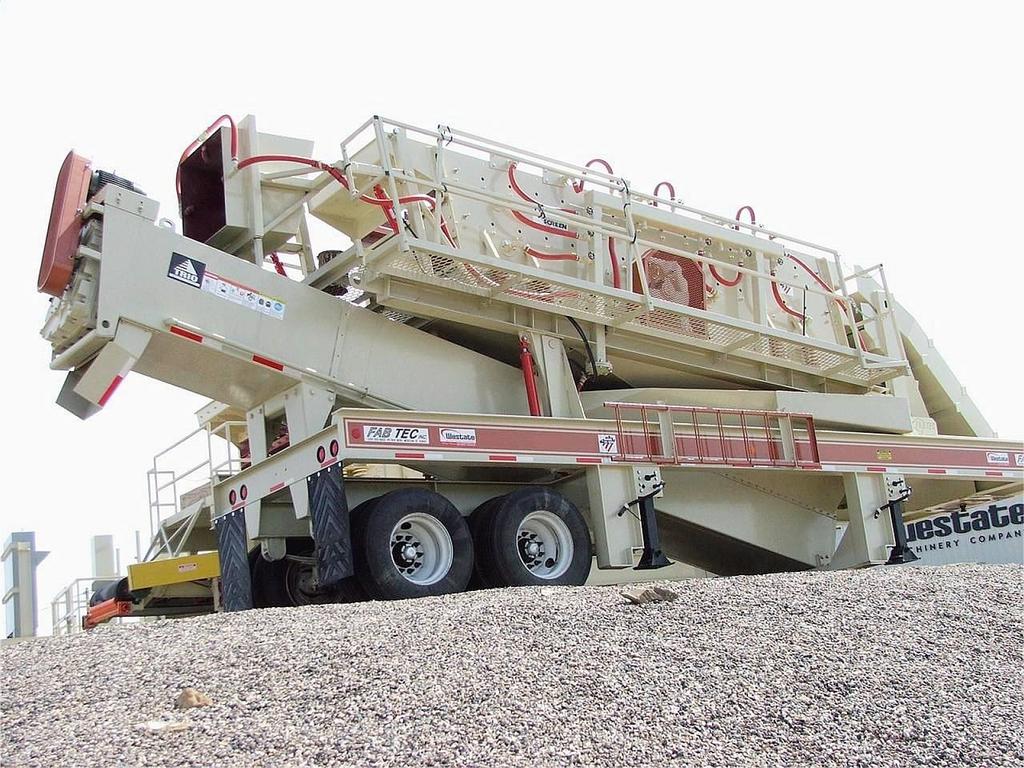

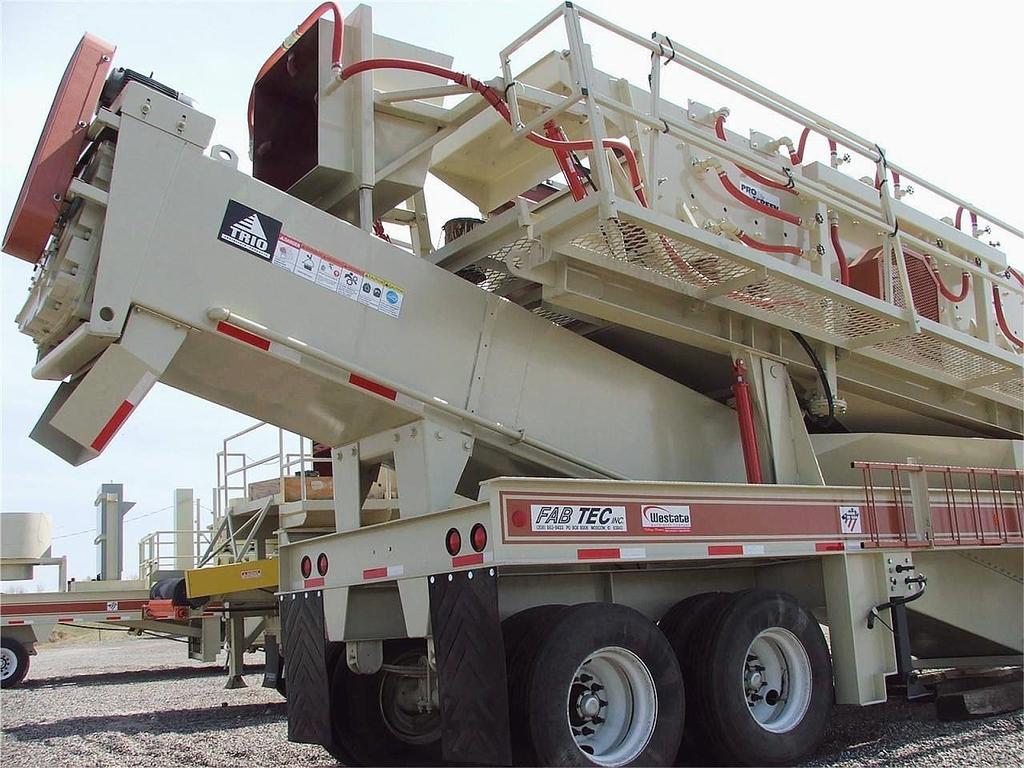

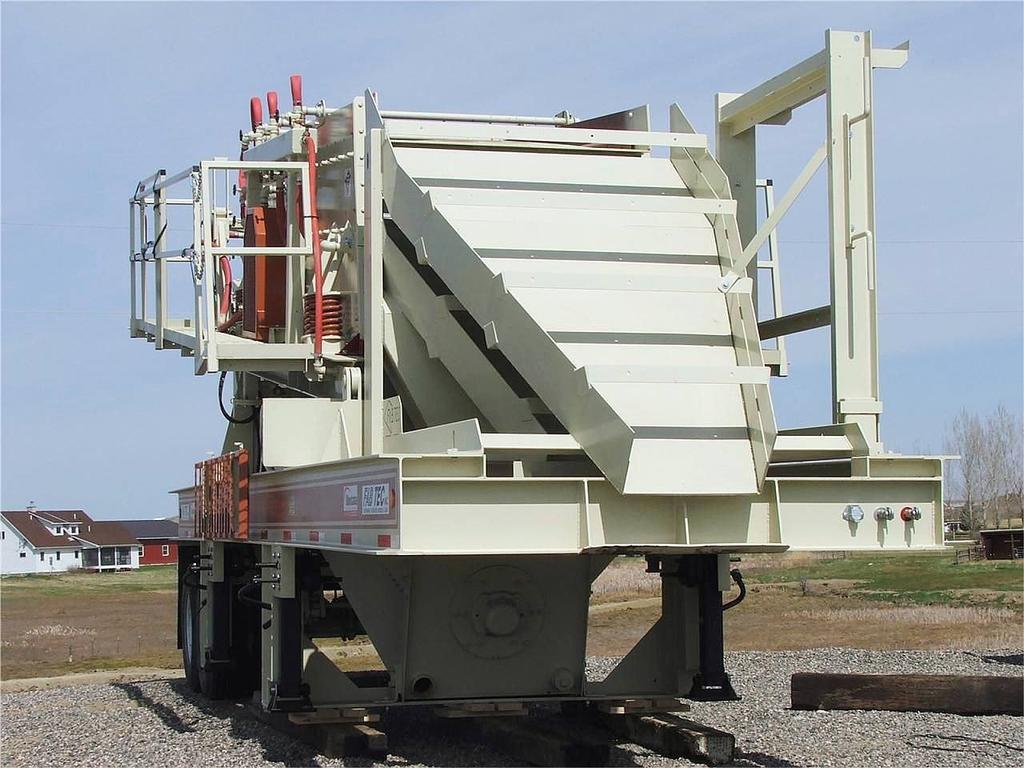

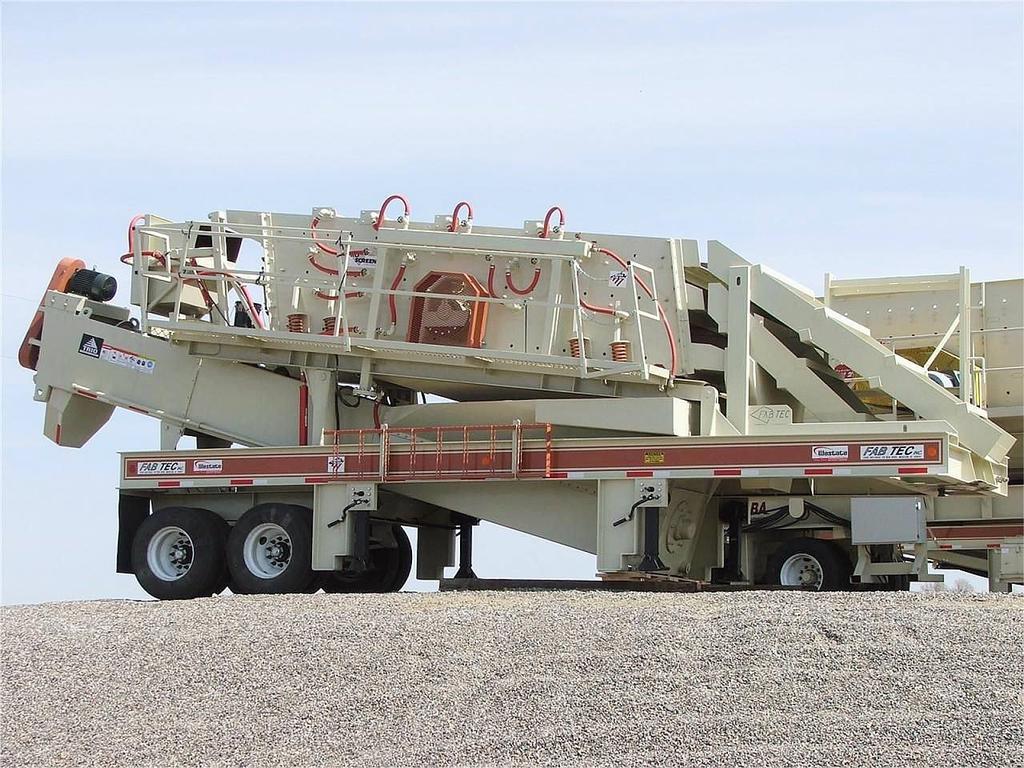

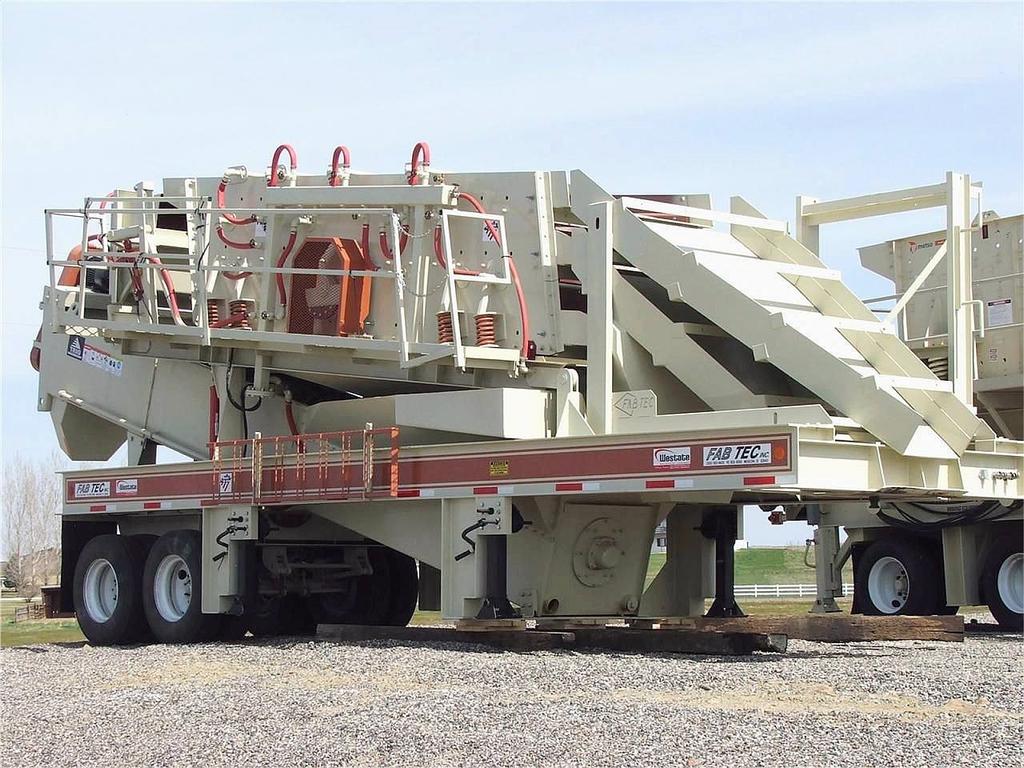

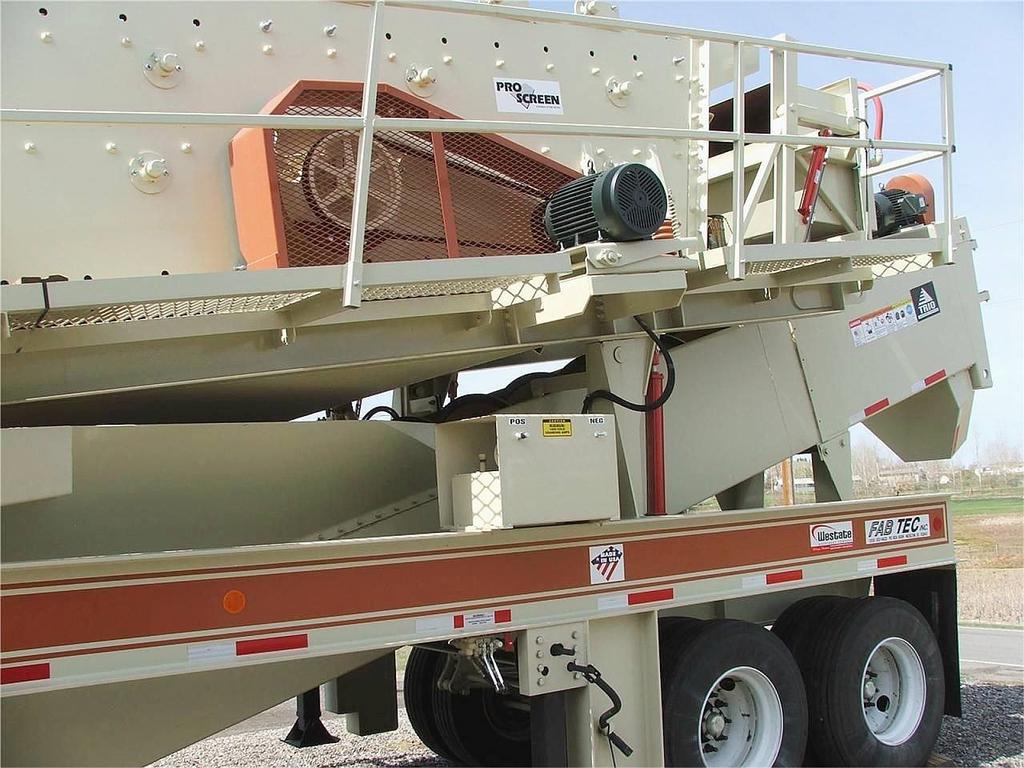

| FABTEC 5 x16 portable washplant with 36 screw FABTEC pro 5X16 three deck incline screen 20 hp tefc with pivot motor base and power and belt 3/8 pl side walls huck bolted screen decks rectangular tubing, x 3 fb crown bars ar lined feed box and discharge lips alco high temper isolation springs 100 mm torrington spherical bearings fab tec cartilage style bearing housings, with heavy duty 1 1/4 wall. Eccentrics with add on weights. 10 wf sub frame 33# with c8x 13.75# cross members. Standard side tension formed clamp bars and crown bar rubbers. 36x25' sandscrew 15 hp tefc toshiba motor. Greasable lower bearing, rubber sealed with bearing spacer for trouble free use. Extra thick replaceable wear plates, tube & spiral. 100 tph material size 3/8. Tandem axle chassis 16 heavy duty wide flange beams hutch 9700 series suspension. 22,500# standard forge axles. 11:00x22.5 tires feed slurry box with spray heads hydraulic raise and lower of screen and slurry box qty (3) ar li |
