2013 CEDARAPIDS MVP380X Photo Details
|
|

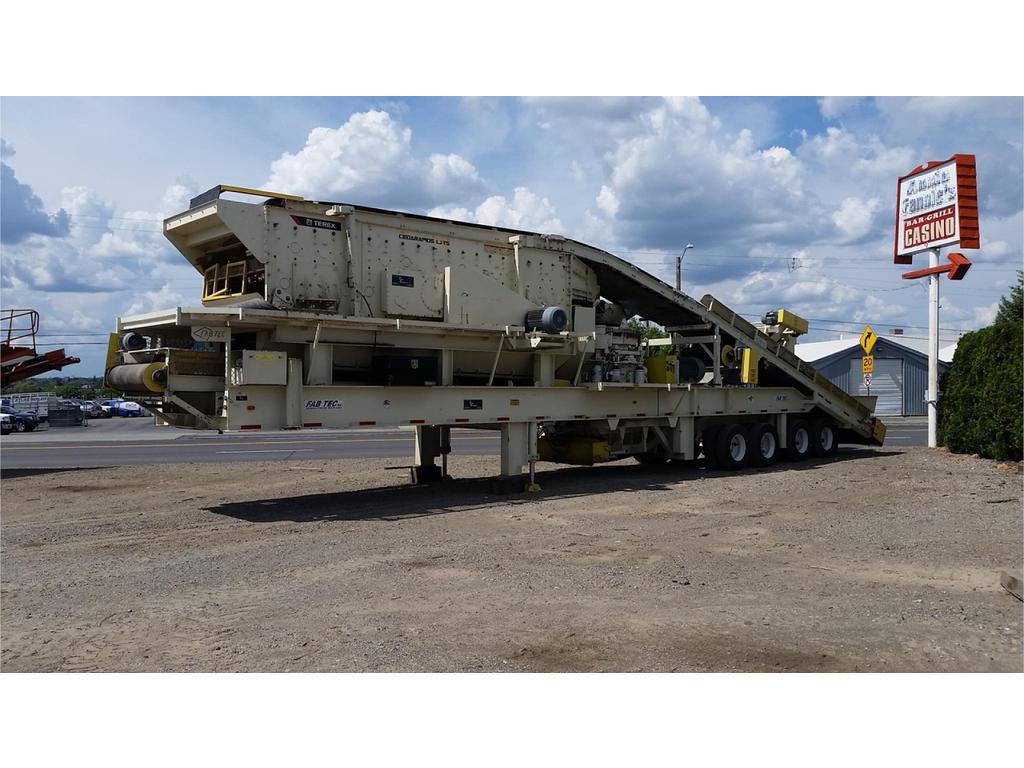

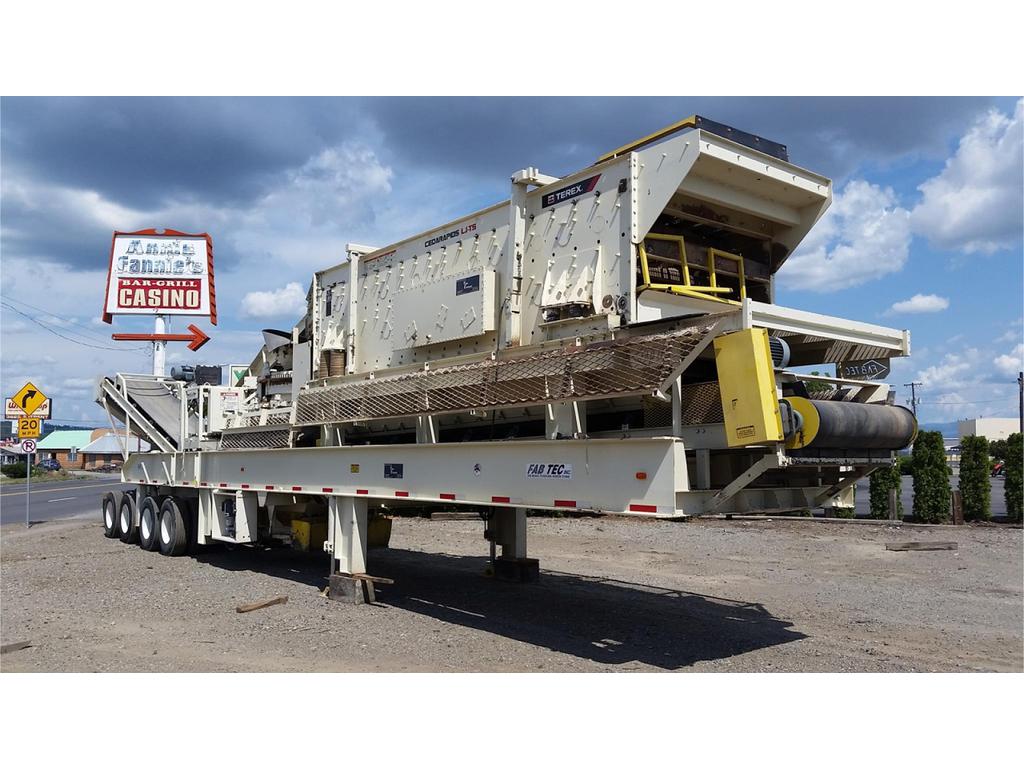

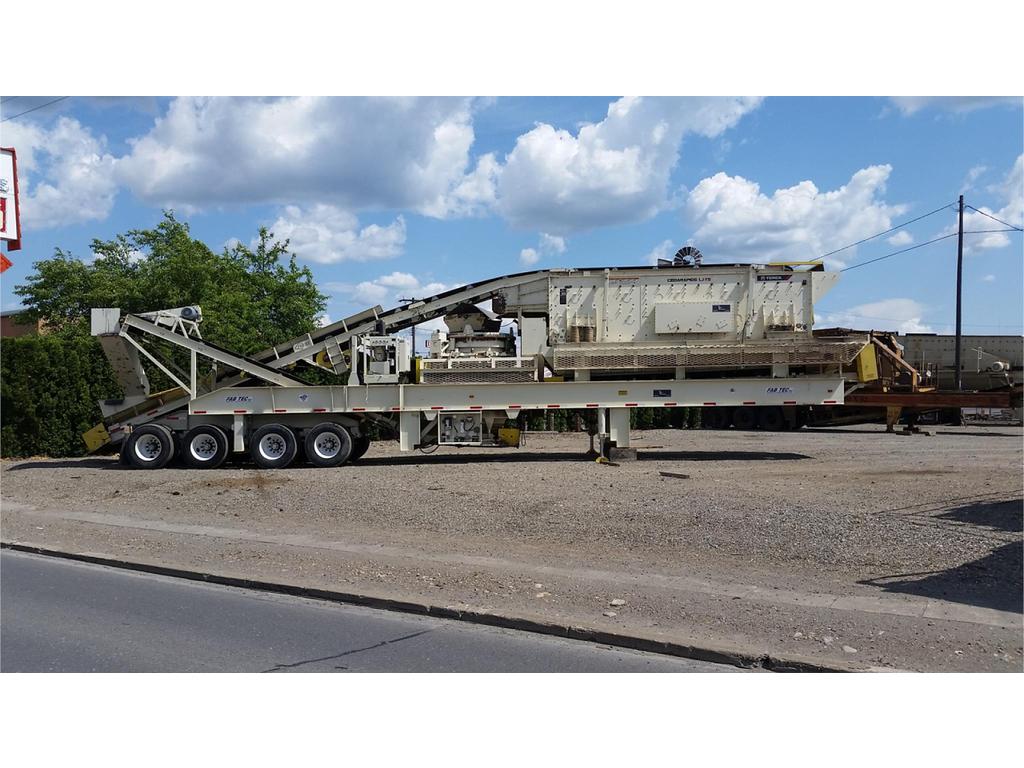

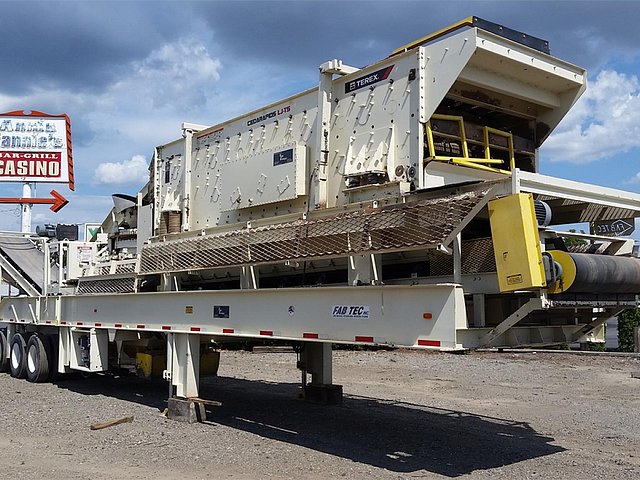

2013 CEDARAPIDS MVP380X
$450,000.00
| Closed circuit 300hp high speed cone plant w/ CEDARAPIDS 6'x 20' three deck flat screen 4 axle carrier features: 24 wf 76# beams. Hutch 9700 series suspension: 10' wide, 61 c/c axle spacing. 22,500# standard forge axles, 11:00r x 22.5 tires. Six ground support stands with jacking pads. Standard 5th wheel pl, air brakes, lights & mud flaps. Heavy duty cone mount with ar lined discharge chute with adjustable skirt board wipers & maintenance door. Product discharge chutes with ar liners, discharging to either side. Close circuit chute between cone & feed conveyor with ar liner. Screen feeding 1st and 2nd deck into cone with option of 2nd deck discharging into product chute. 1/3 - 2/3 blending for 2nd deck to underscreen conveyor. Screen chute built in 2 pieces. 1/4 pl under screen collection hopper with adjustable skirt board wipers. 20 fold down walkways both sides of screen & 48 back platform with skywalk floor, 42 tubesteel handrails |
