2013 CEDARAPIDS 1516 HSI Photo Details
2013 CEDARAPIDS 1516 HSI Photo

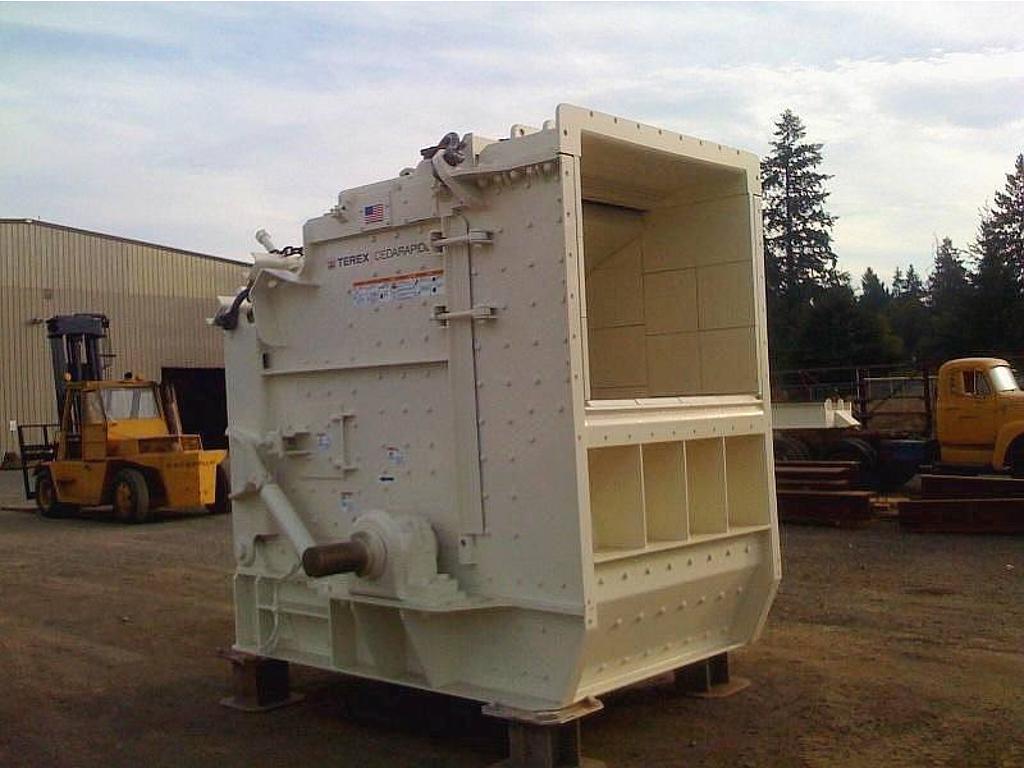

2013 CEDARAPIDS 1516 HSI

New cedarapis 1516 primary hsi (bare crusher) CEDARAPIDS model 1516 andreas primary impactor (2-breaker plate and 3-bar rotor) 61 diameter x 64 wide fabricated open-disc rotor, includes massive backer bars to support 5 thick manganese steel impeller bars; each impeller bar is designed with three wear surfaces for maximum production capability through the life of the bar; retention wedges for the impeller bars allow for quick vertical removal; rotor features large 220mm grease lubricated spherical roller bearings with taconite ii labyrinth type seals; bearings are hydraulically removable on a chrome/nickel/molybdenum tapered stub shafts; reversible one-piece cast manganese upper breaker plate with full length pivot pin which remains in the breaker plate during removal; fabricated lower breaker plate equipped with 3 thick replaceable and turnable tool steel liners; upper frame cover allows vertical removal of breaker plates; primary and secondary breaker plates are ad
