2011 CONVEYOR SALES 36X63 Photo Details
|
|
2011 CONVEYOR SALES 36X63
$24,600.00

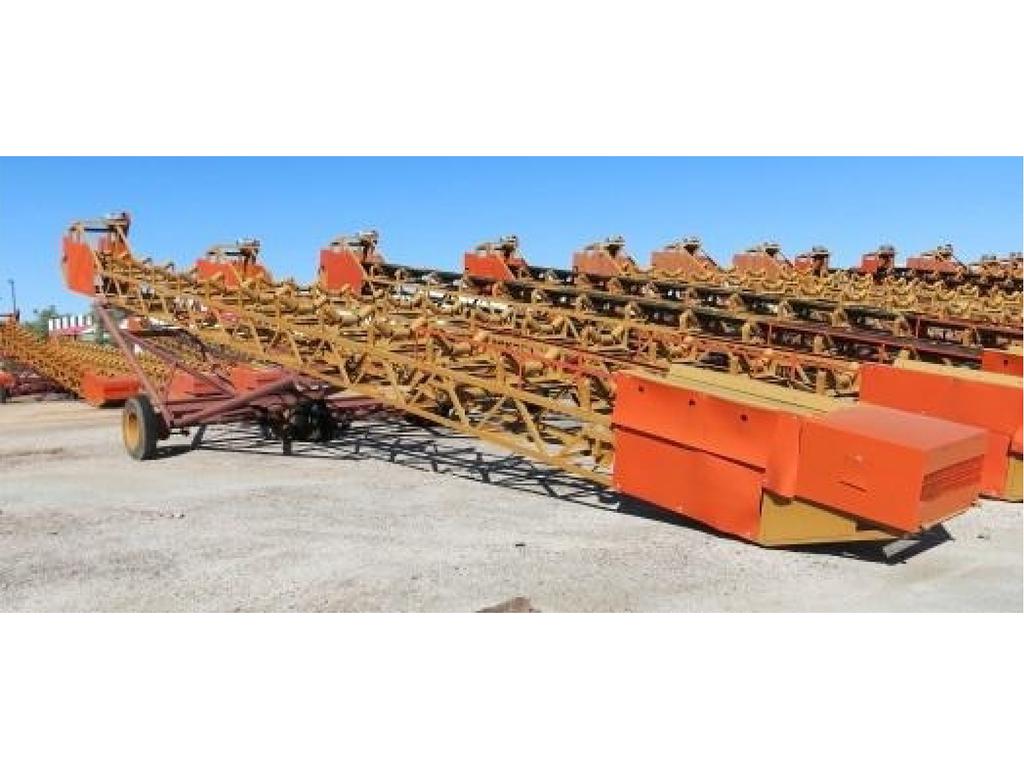

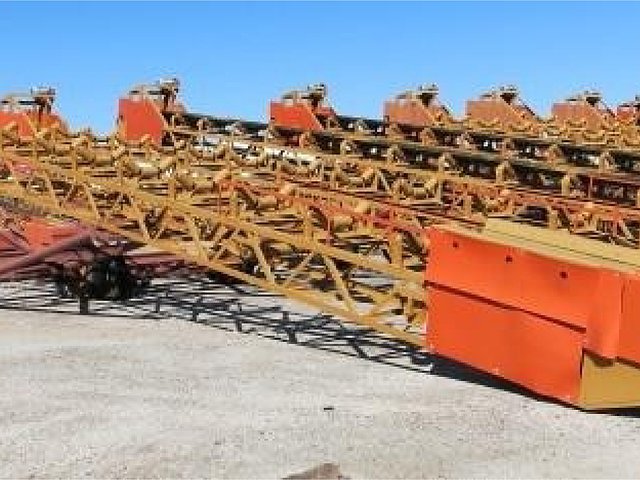

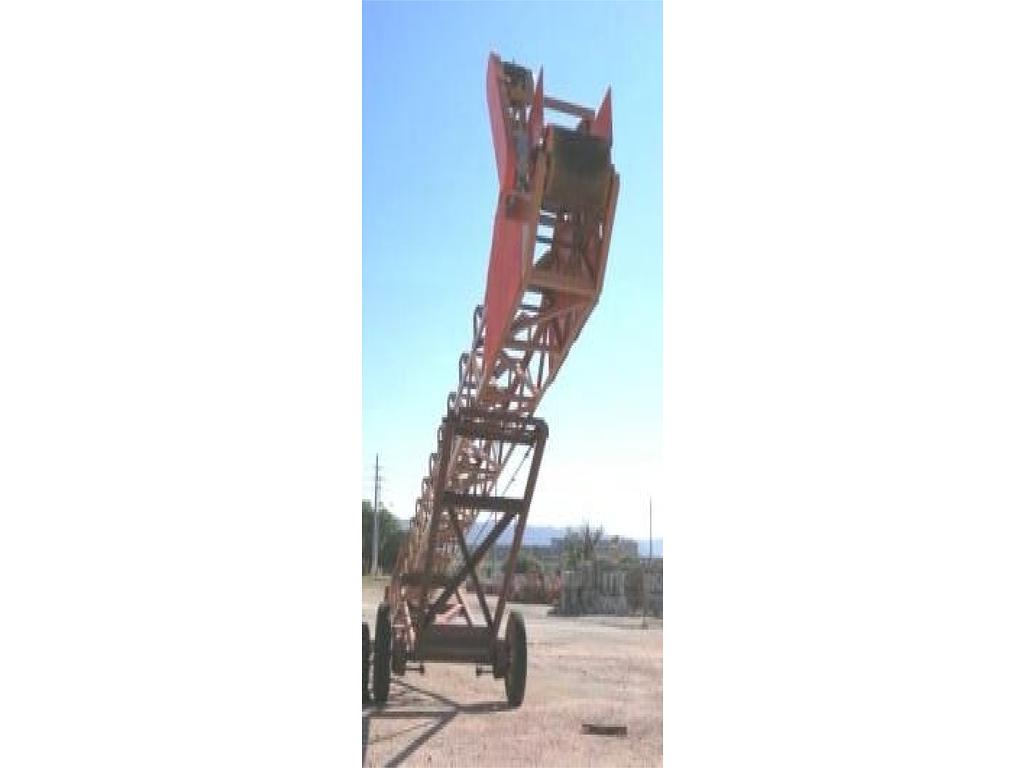

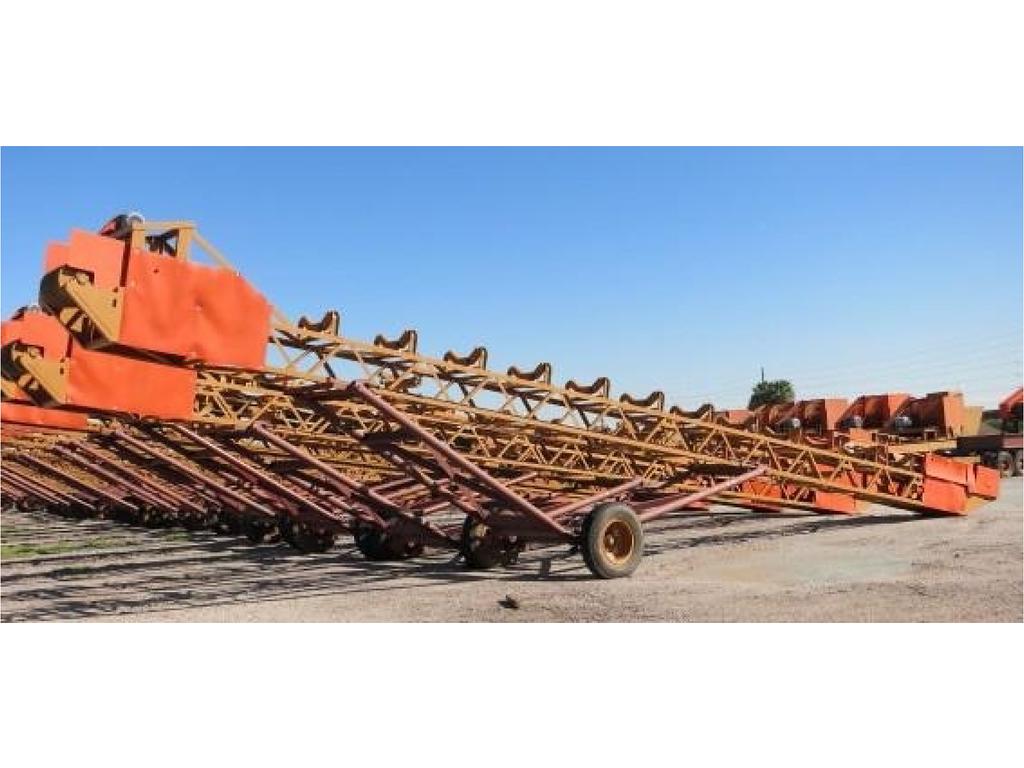

| 36 x 63' portable conveyor specifications: portable straight axle undercarraige. 20hp electric motor drive with leroy somers 207 shaft mounted speed reducer. 16 lagged directional head pulley with 2 7/16 diameter head shaft. 16 self-cleaning flat bar tail pulley with 2 7/16 diameter tail shaft and adjustable 44 take-ups. 35 x 5 dia. Cema c troughing and return rollers. 24 deep lattice frame construction with 3x3x1/4 chord angles. 6' receiving hopper with 6 rubber flashing. 2-ply belting with 3/16x1/16 covers. Drive, nip, pinch-rail, tail pulley guards. Belt speed approximately 320 fpm. Travel dimensions: 9'5 wide x 63' long x 14' high. F.o.b.: phoenix, az price: $24,600.00 |
