2009 CONVEYOR SALES 4X10 Photo Details
|
|
2009 CONVEYOR SALES 4X10
$34,500.00

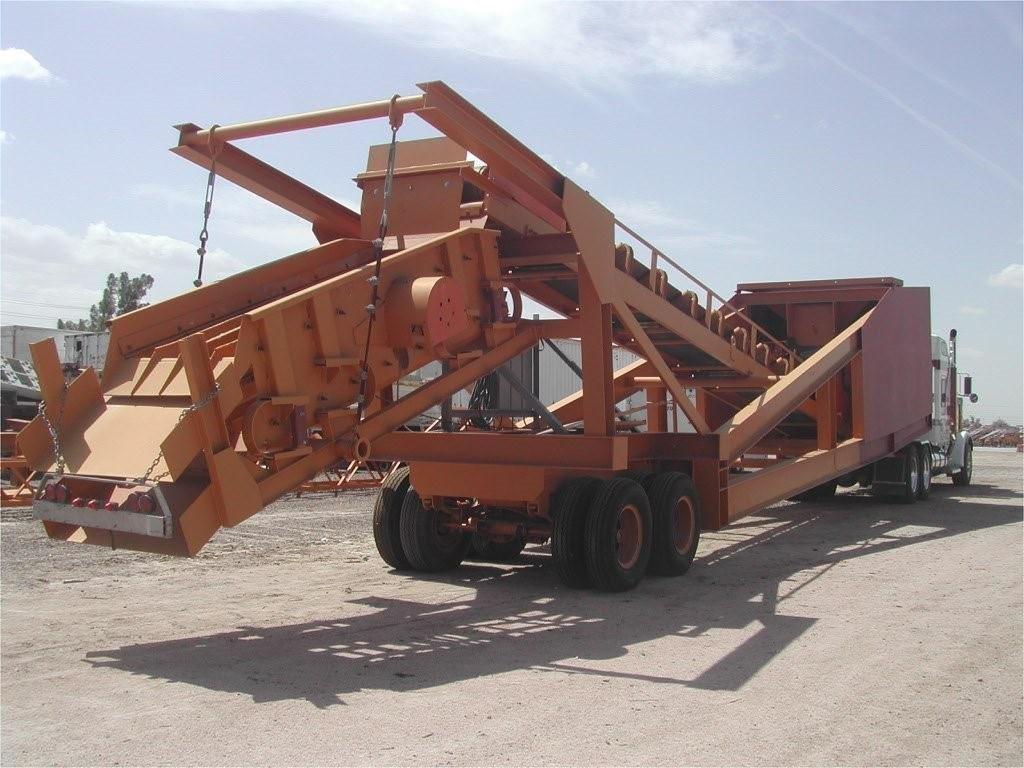

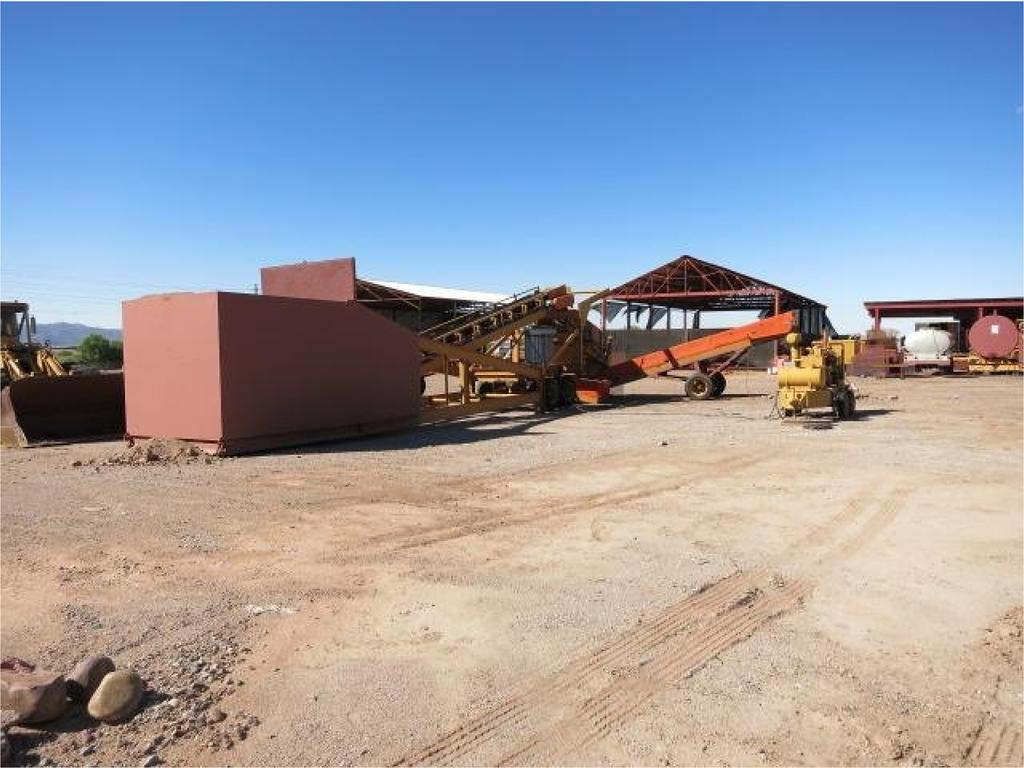

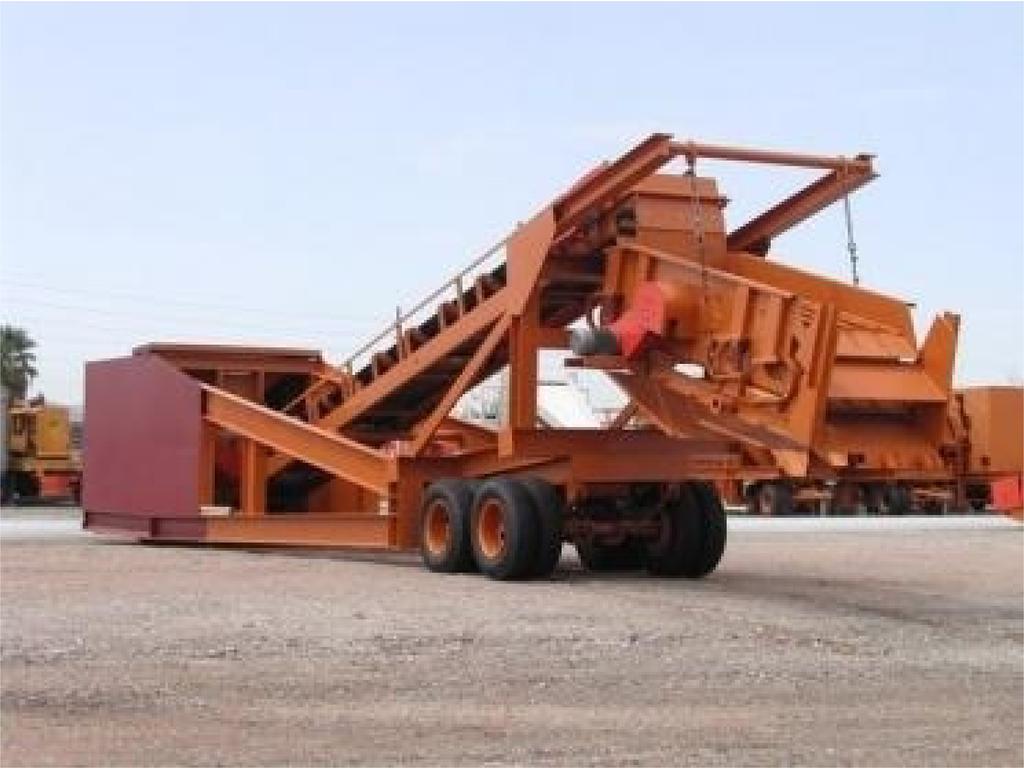

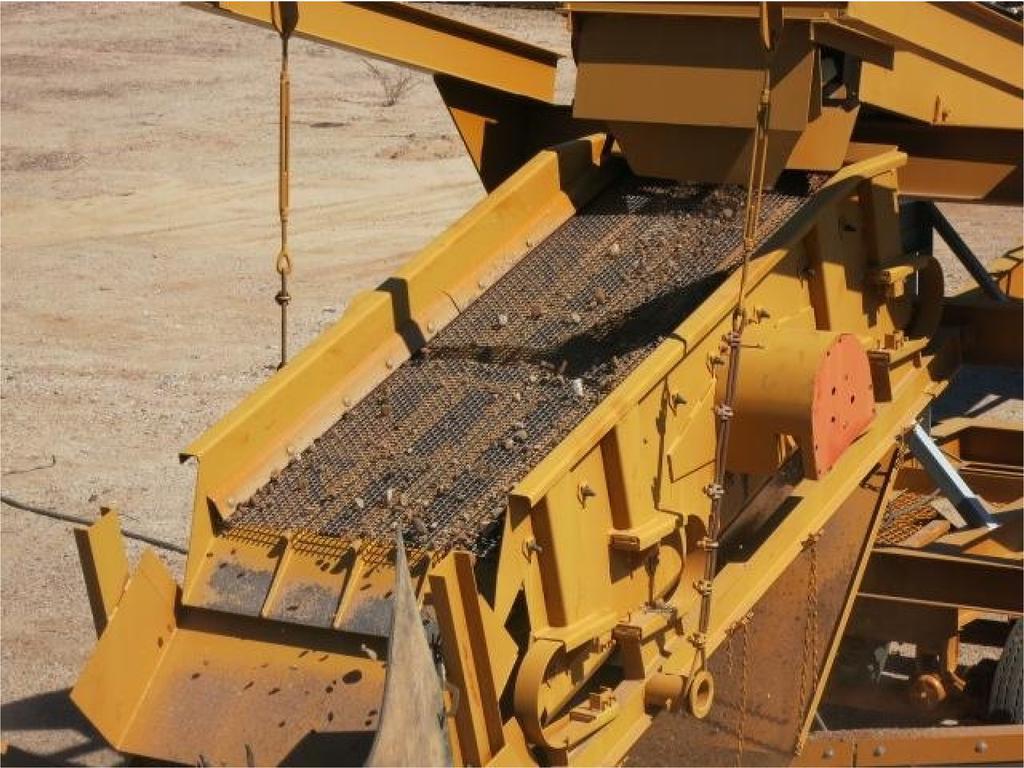

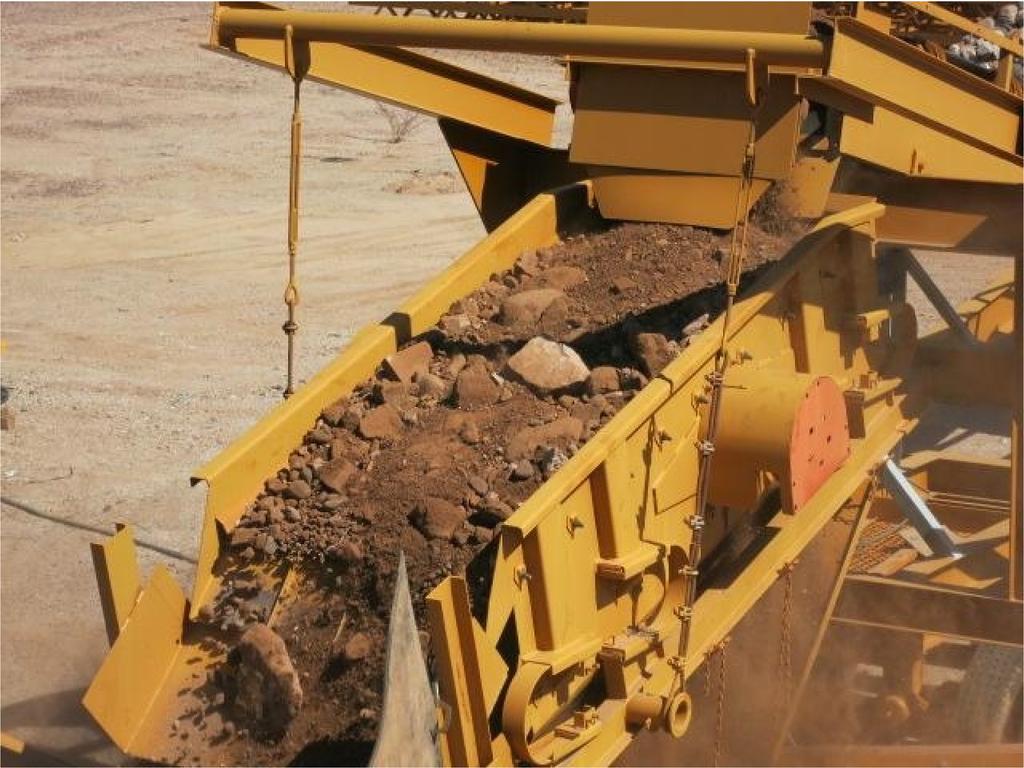

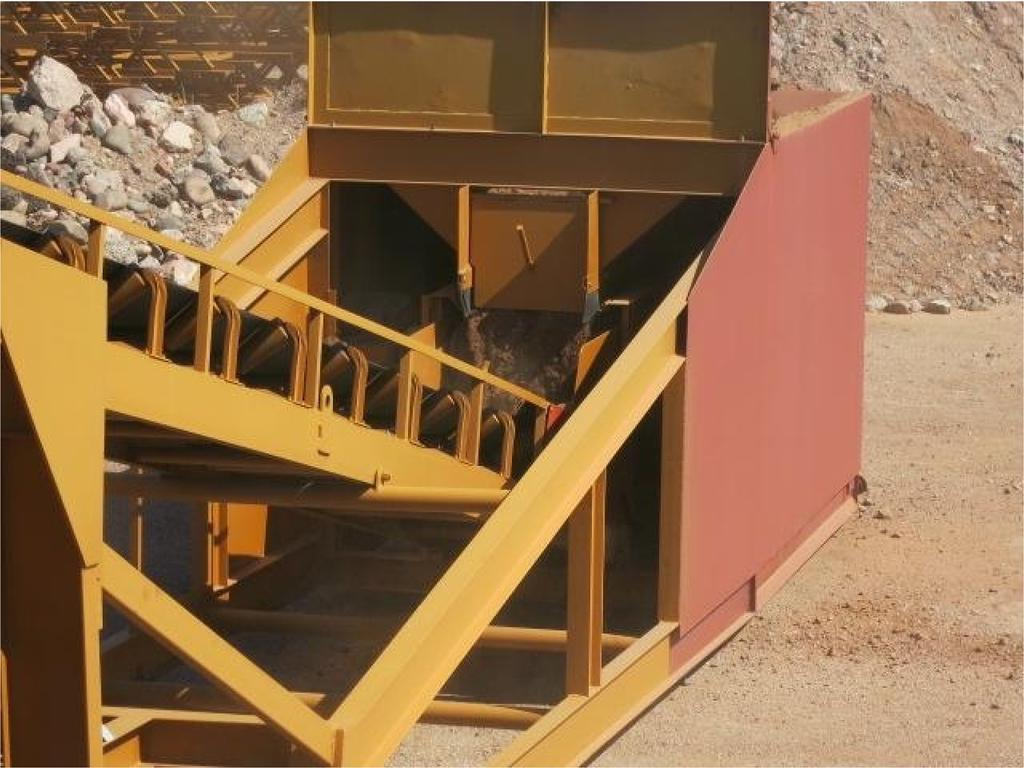

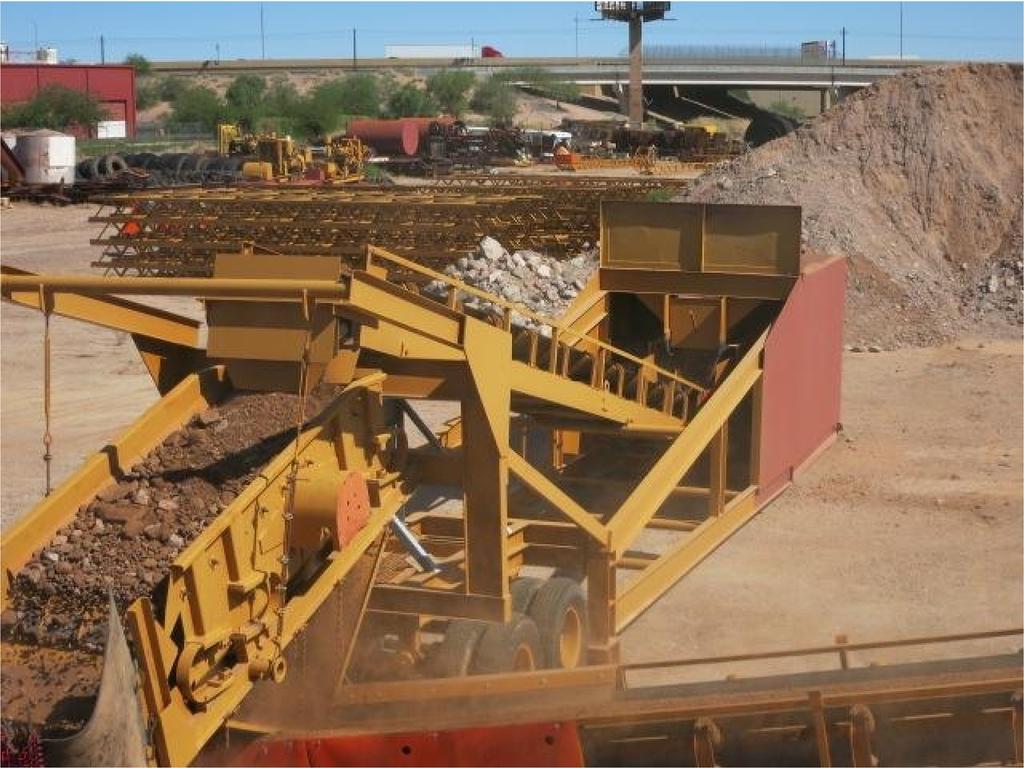

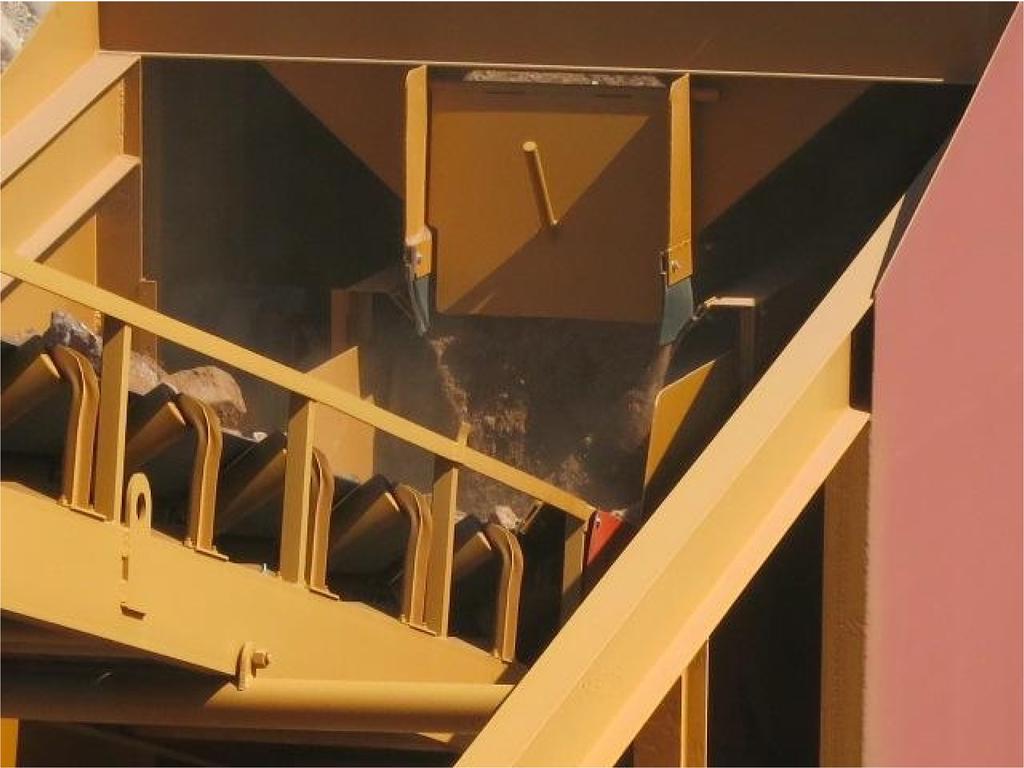

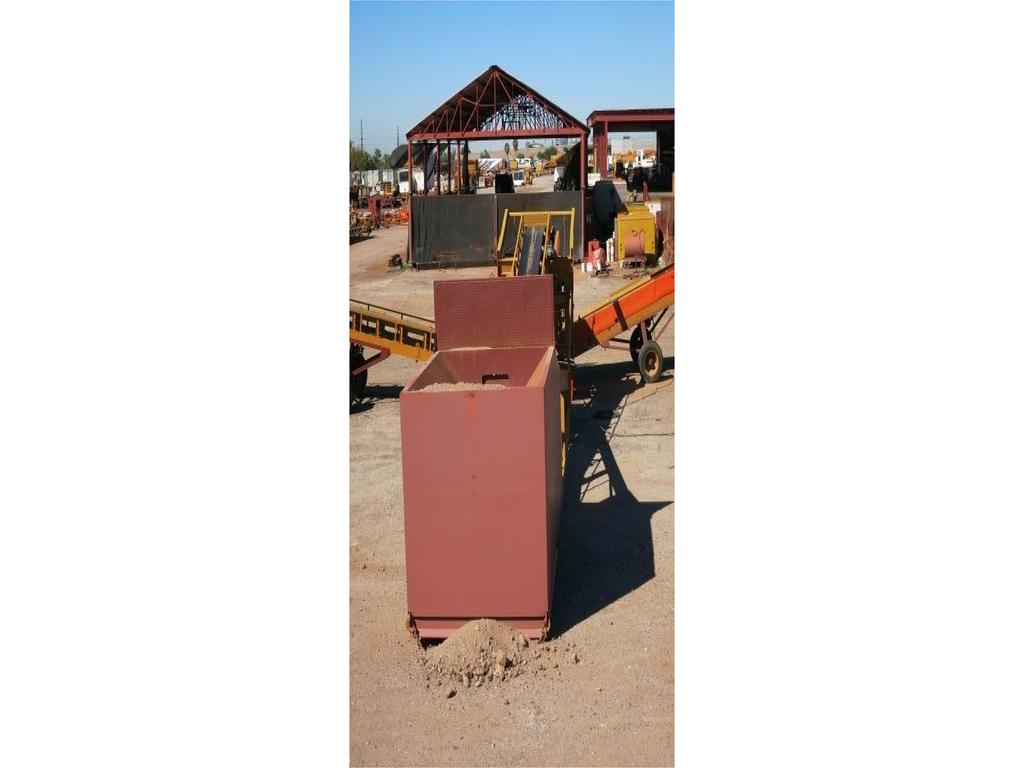

| Unused CONVEYOR SALES company tandem axle portable screening plant to include feed hopper with 36 wide belt feeder, 30x40' main conveyor belt, 4'x10' 2-deck and electrical switchgear for three 10 hp motors. Optional stockpiling conveyors are available the feed hopper is approximately 10' long x 8'6 wide and has an approximate capacity of 12-14 cubic yards. A 36x10' belt feeder with strike off plate is mounted below the feed hopper and is equipped with a single speed 10 hp electric motor drive. The main conveyor belt is 30 wide x 40' long and is equipped with a 10 hp electric motor drive. A 4'x10' 2-deck gator screen is used for sizing final products and is equipped with a 10 hp electric motor drive. The tandem axle portable chassis is equipped with air brakes, 6 blocking legs and a 5th wheel pin. Drive, nip, pinch-rail and pulley guards on all component machinery. Dimensions: 9'0 wide x 60'0 long x 13'6 high., horse power: 10 |
