2008 CONVEYOR SALES 30X103 Photo Details
|
|

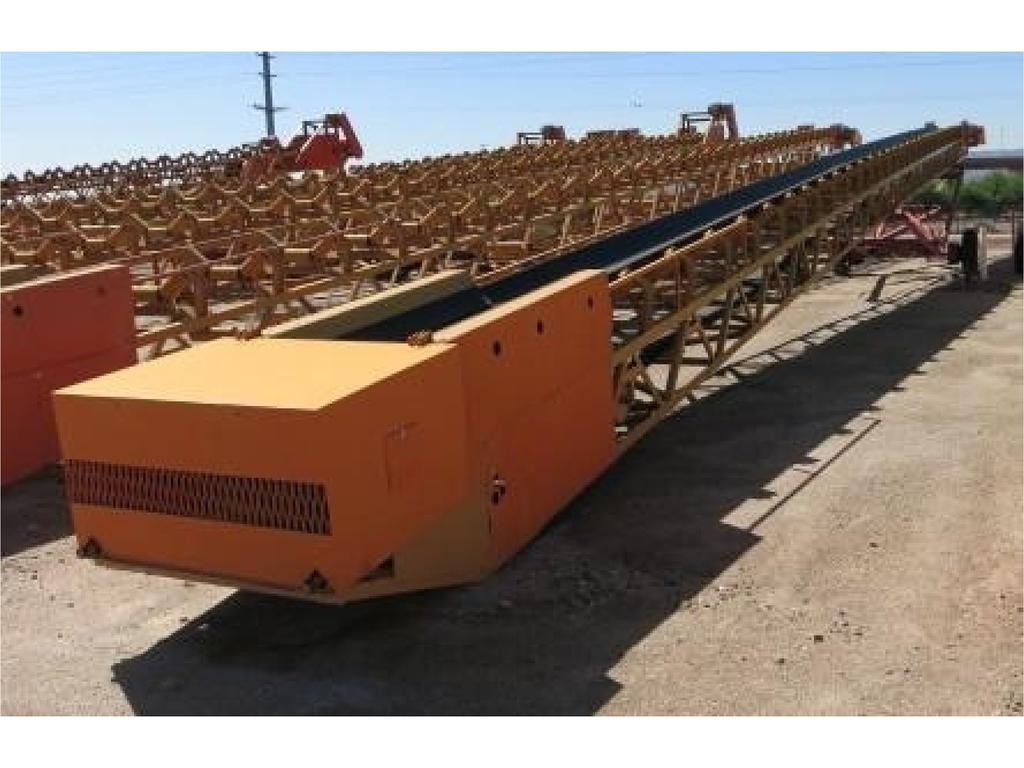

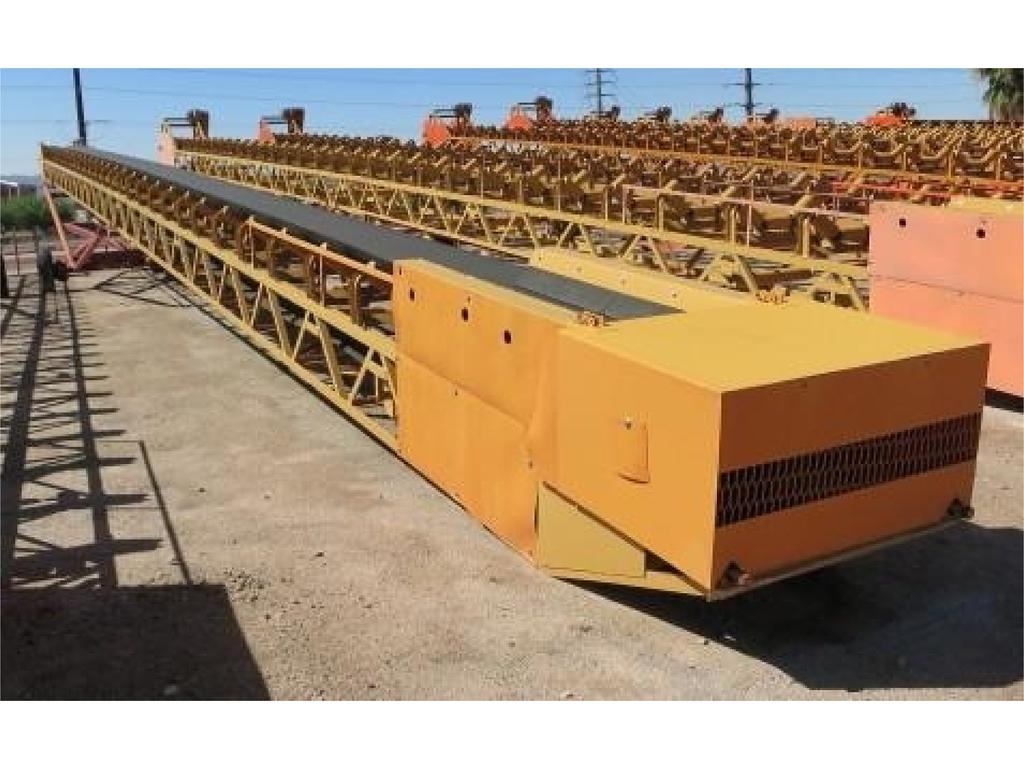

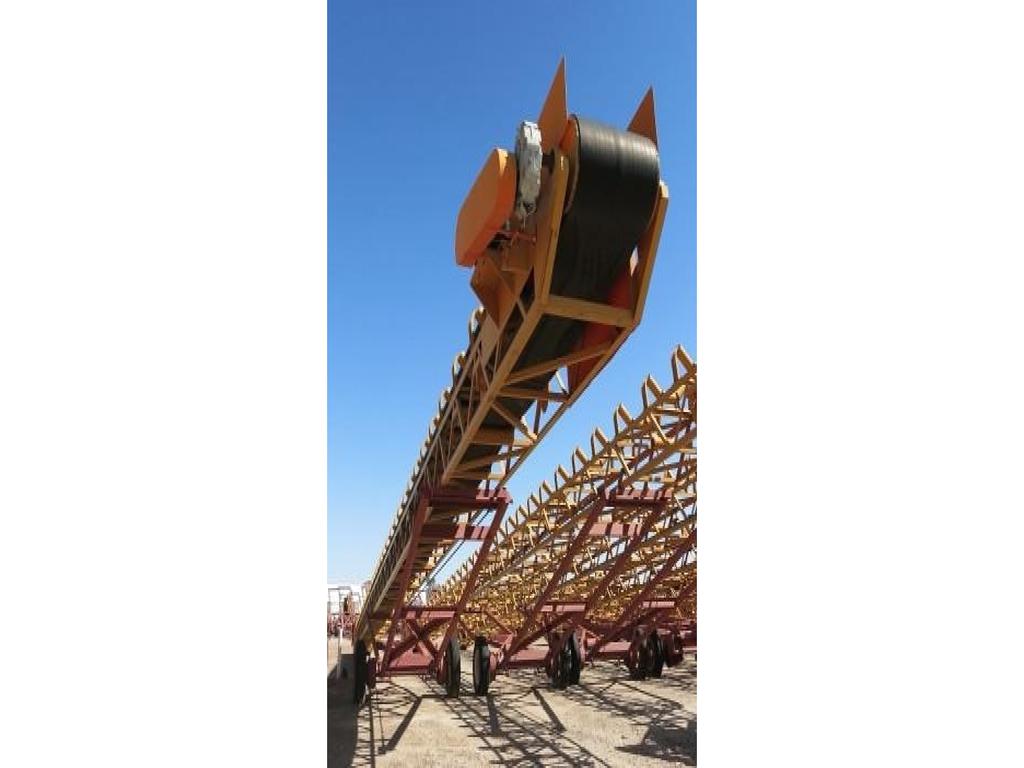

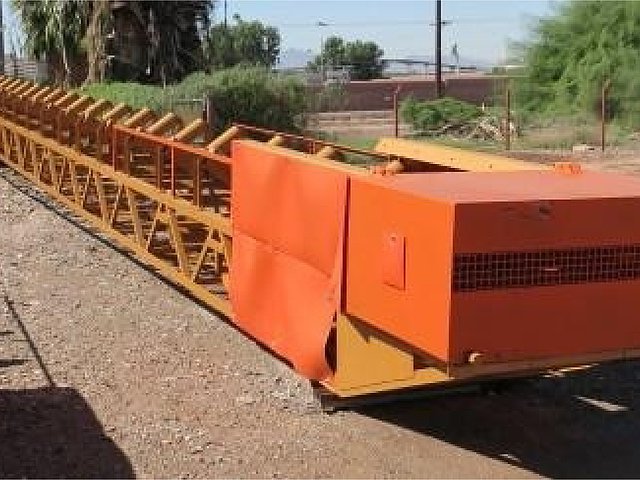

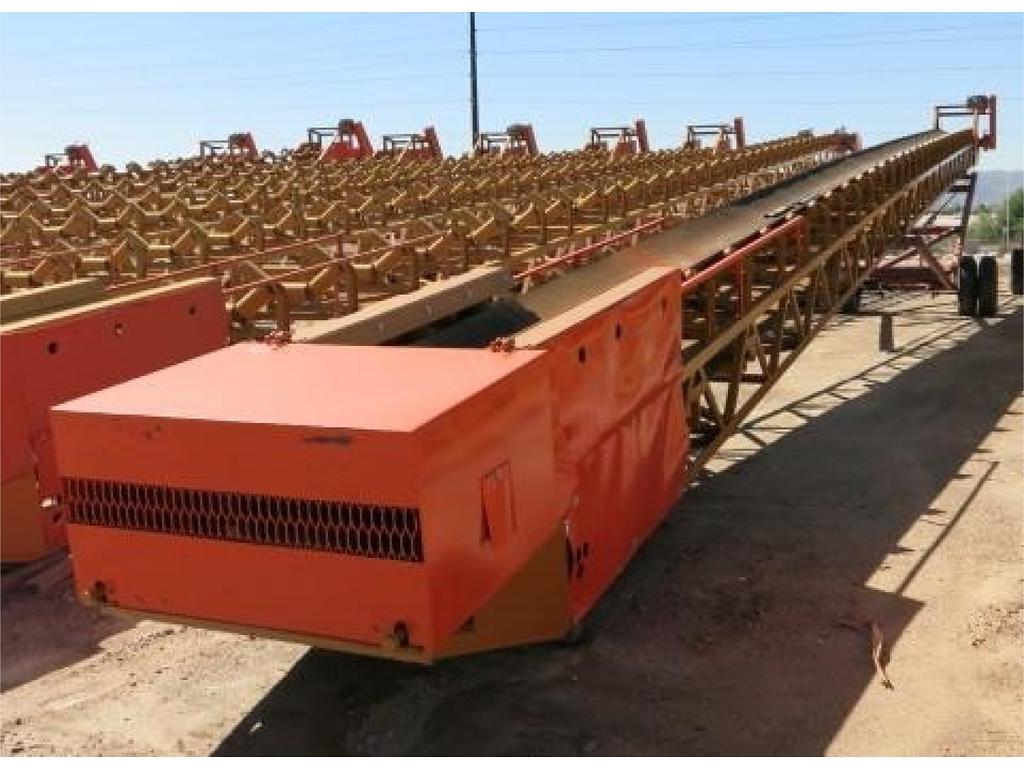

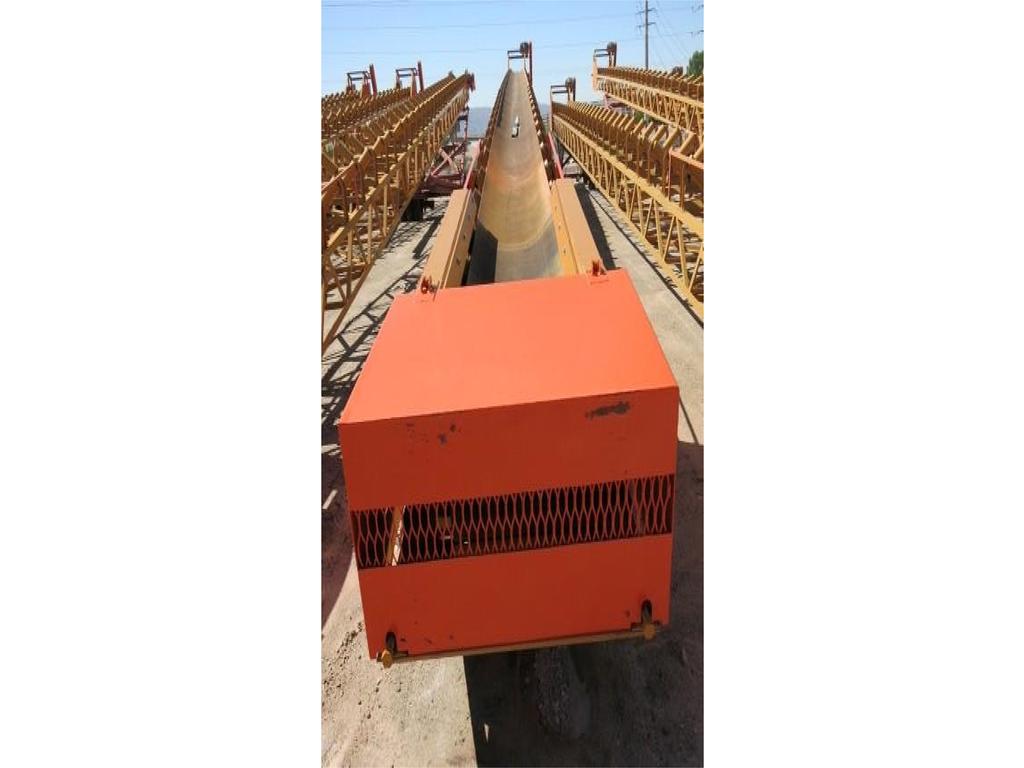

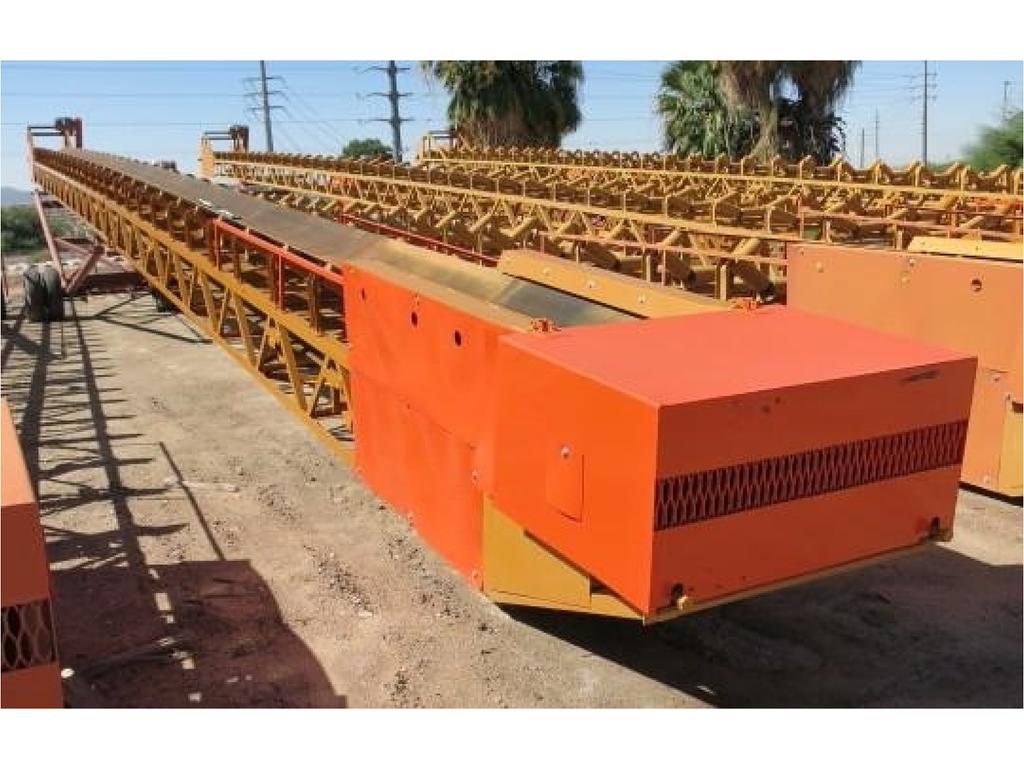

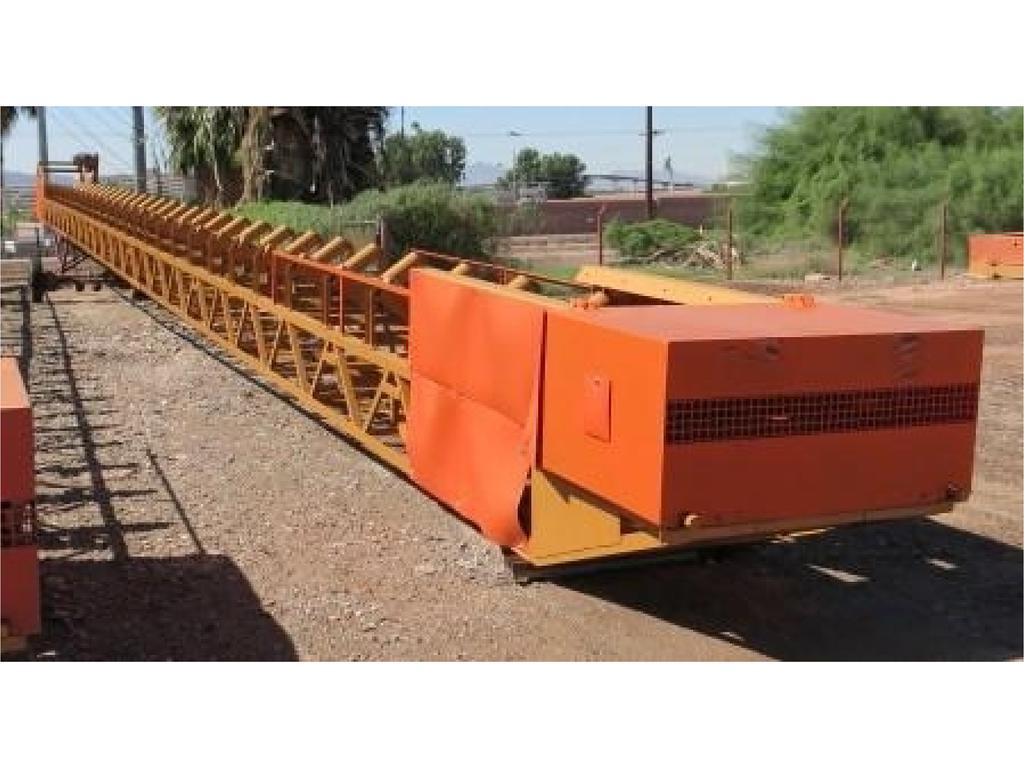

2008 CONVEYOR SALES 30X103
$32,400.00

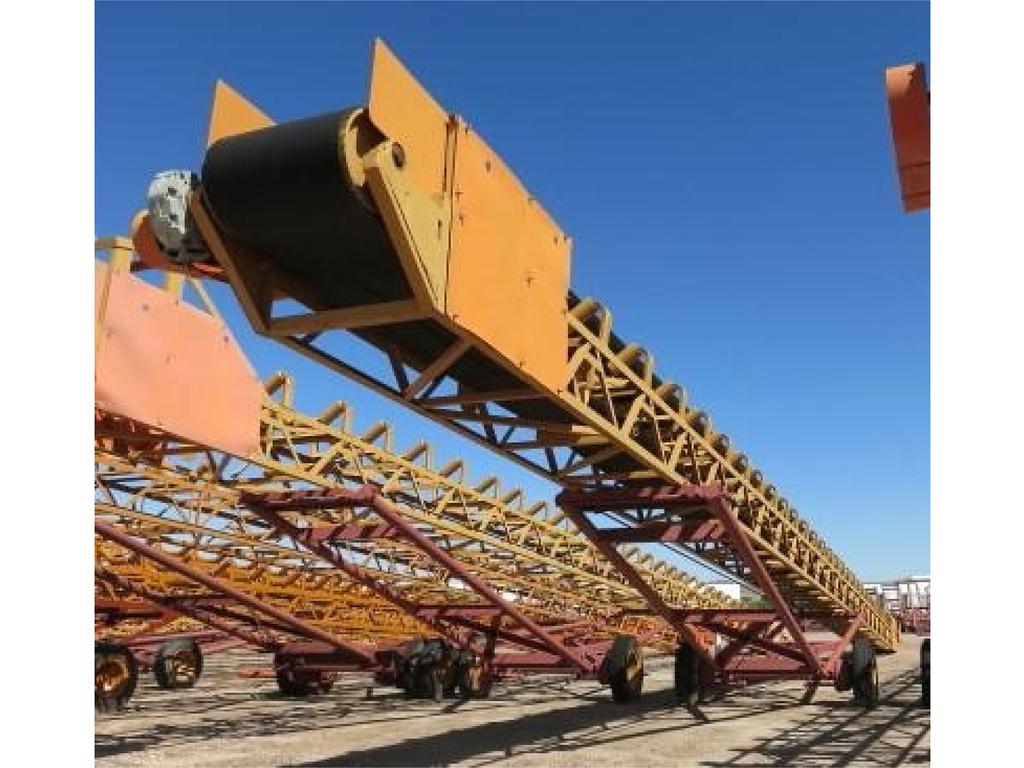

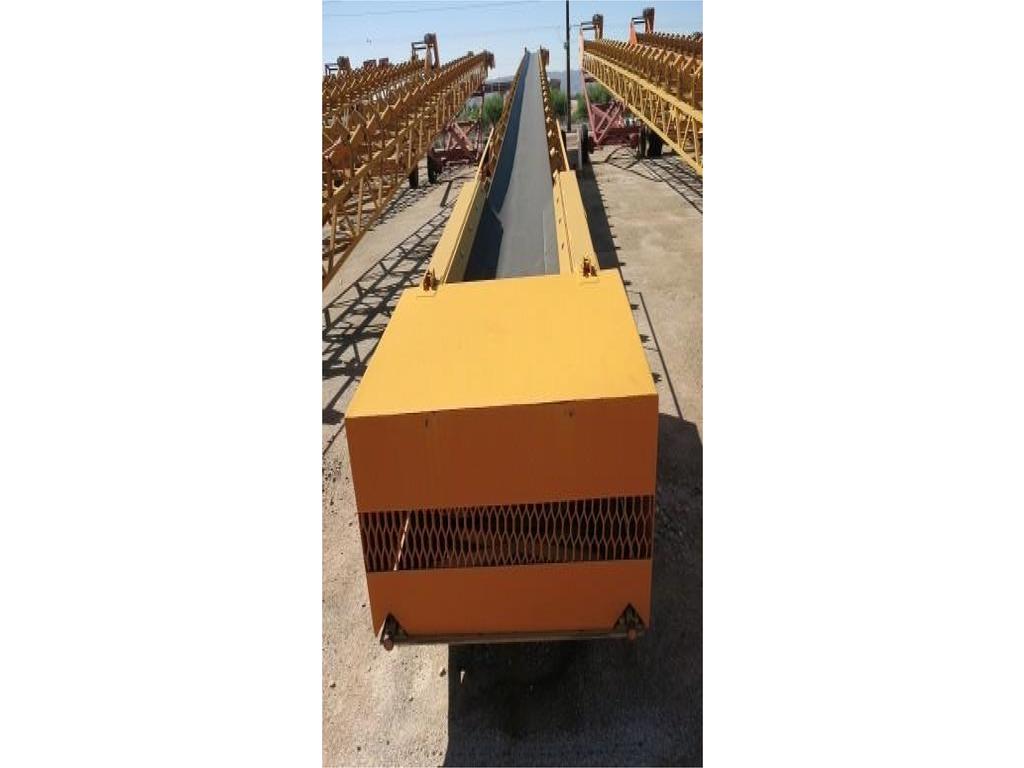

| 30 x 103' portable conveyor specifications: portable straight axle undercarraige. 25hp electric motor drive with leroy somers 215 shaft mounted speed reducer. 16 lagged directional head pulley with 2 7/16 diameter head shaft. 16 self-cleaning flat bar tail pulley with 2 7/16 diameter tail shaft and adjustable 44 take-ups. 35 x 5 dia. Cema c troughing and return rollers. 2 guide rolls on the return belt side at the tail end of the conveyor. 24 deep lattice frame construction with 3x3x1/4 chord angles. 6' receiving hopper with 6 rubber flashing. 2-ply belting with 3/16x1/16 covers. Drive, nip, pinch-rail, tail pulley guards. Belt speed approximately 320 fpm. Travel dimensions: 9'5 wide x 103' long x 14' high. F.o.b.: phoenix, az price: $33,900.00 optional consideration: radial undercarriage add $2,500 boom only - no undercarriage $29,500 trans-flite undercarriage - deduct $2,000 |
