2008 CONVEYOR SALES 24X83 Photo Details
|
|

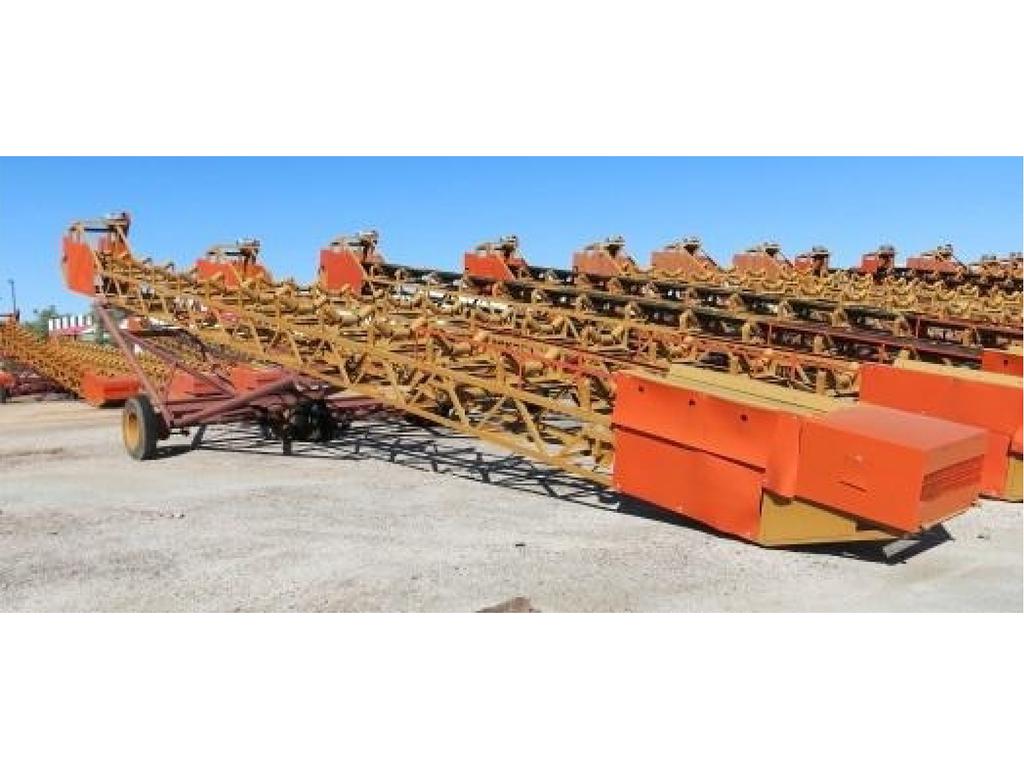

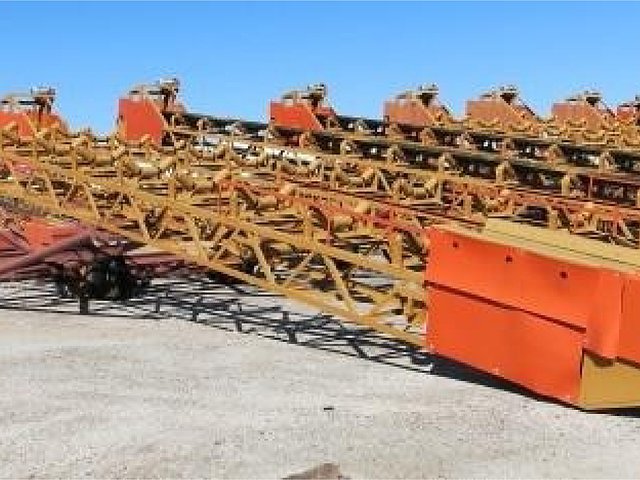

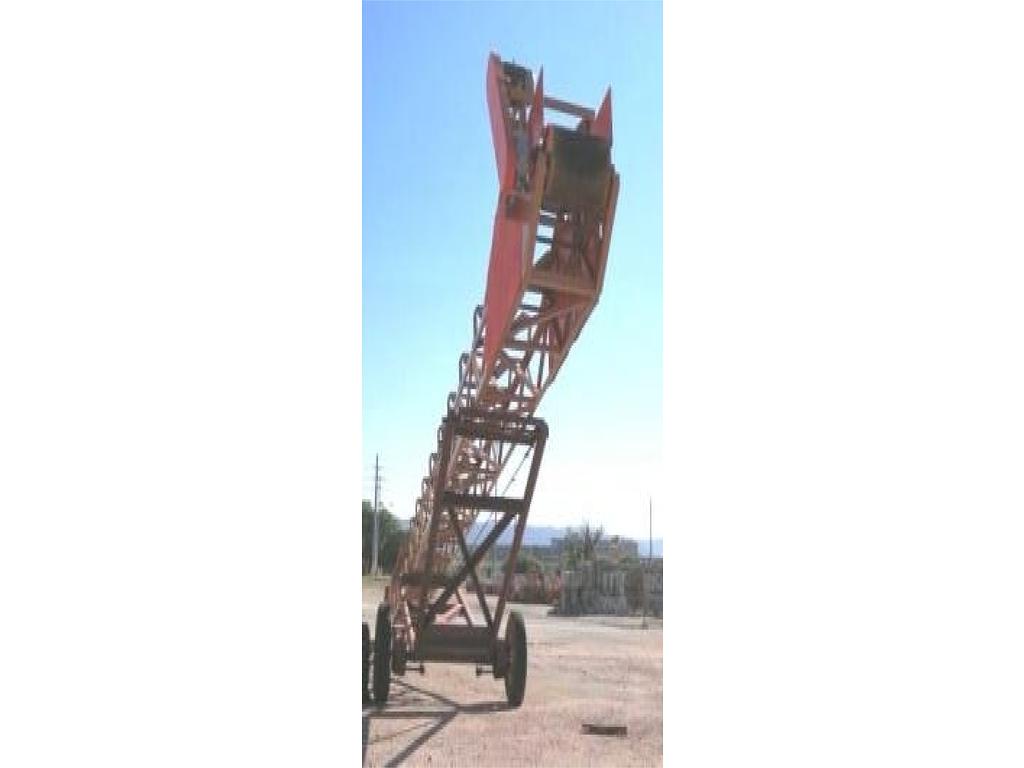

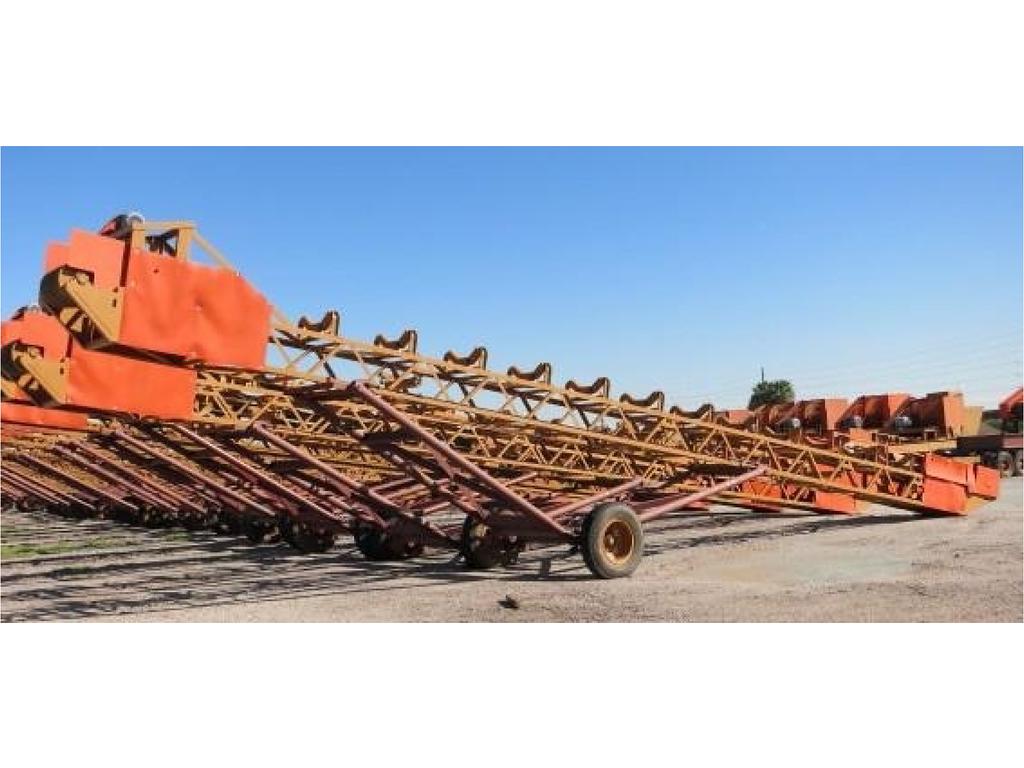

2008 CONVEYOR SALES 24X83
$27,600.00
| 24 x 83' portable conveyor specifications: portable straight axle undercarraige. 15 or 20 hp electric motor drive with leroy somers 207 shaft mounted speed reducer. 16 lagged directional head pulley with 2 7/16 diameter head shaft. 16 self-cleaning flat bar tail pulley with 2 7/16 diameter tail shaft and adjustable 44 take-ups. 35 x 5 dia. Cema c troughing and return rollers. 2 guide rolls on the return belt side at the tail end of the conveyor. 24 deep lattice frame construction with 3x3x1/4 chord angles. 6' receiving hopper with 6 rubber flashing. 2-ply belting with 3/16x1/16 covers. Drive, nip, pinch-rail, tail pulley guards. Belt speed approximately 320 fpm. Travel dimensions: 9'5 wide x 83' long x ' high. F.o.b.: phoenix, az price: $31,900 |
