2008 CONVEYOR SALES 24X63 Photo Details
|
|
2008 CONVEYOR SALES 24X63
$21,200.00

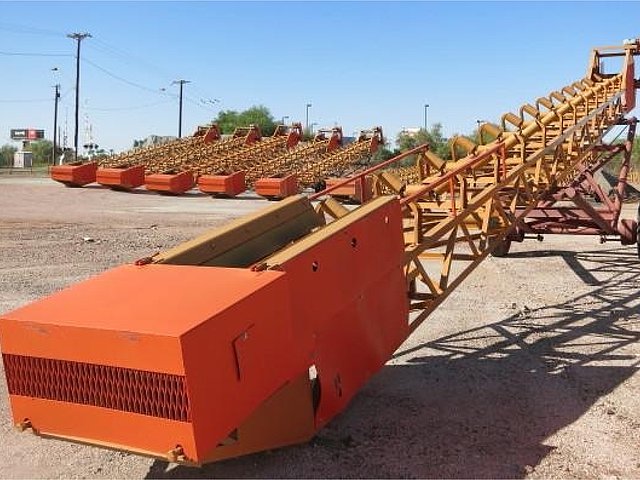

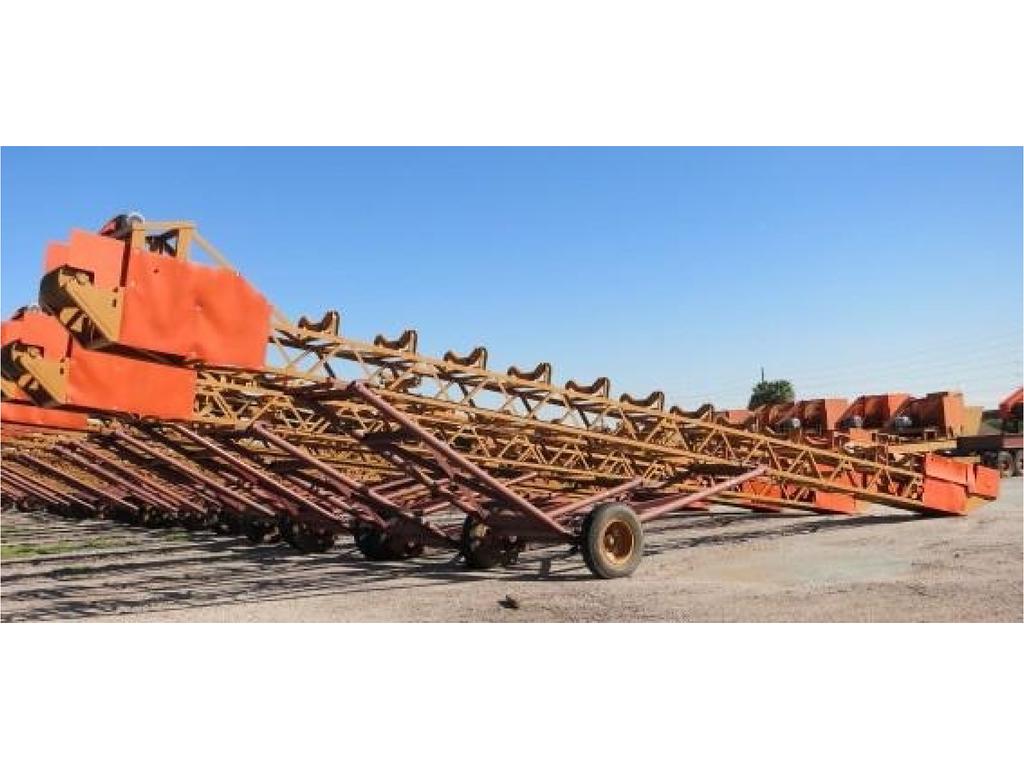

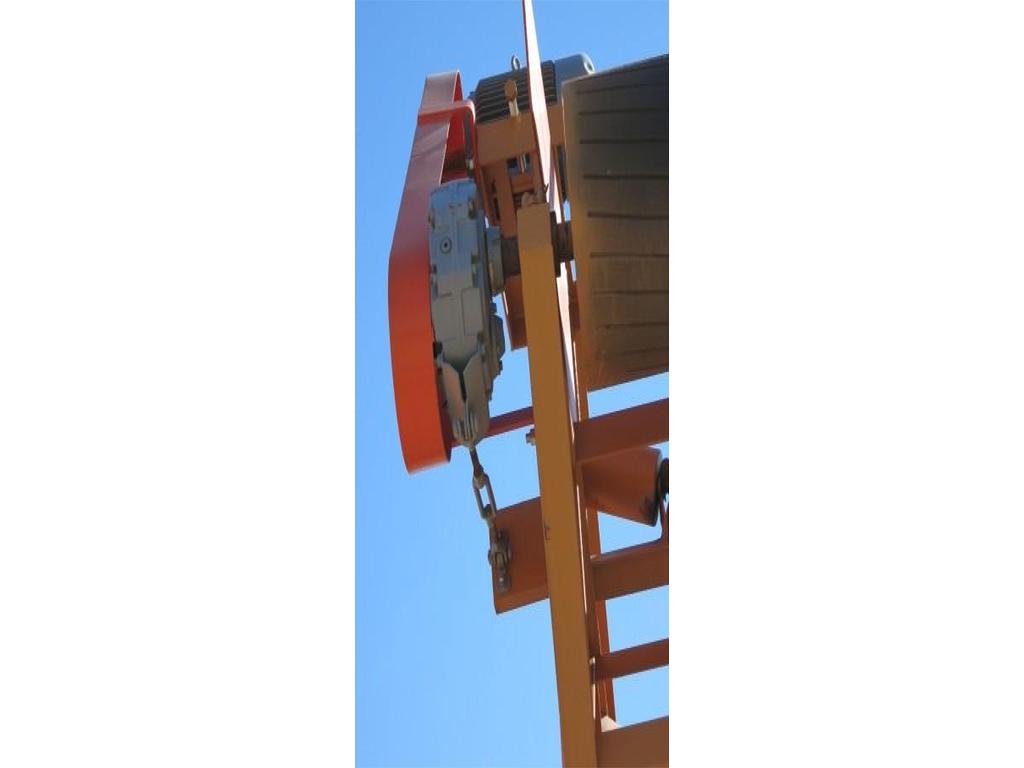

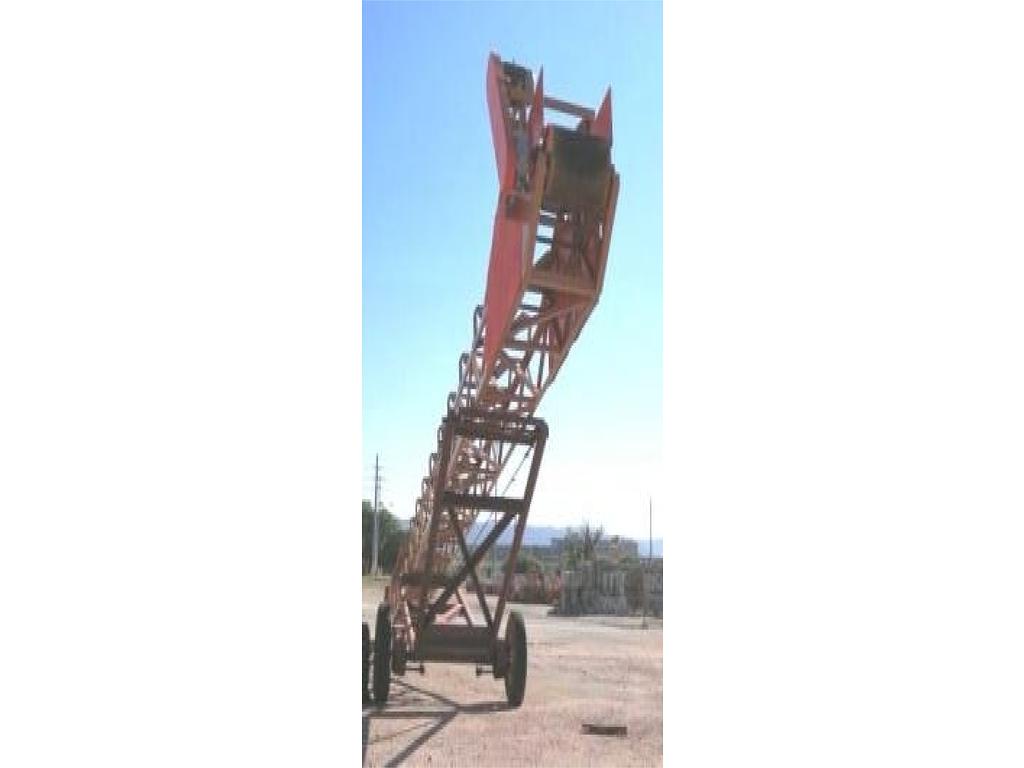

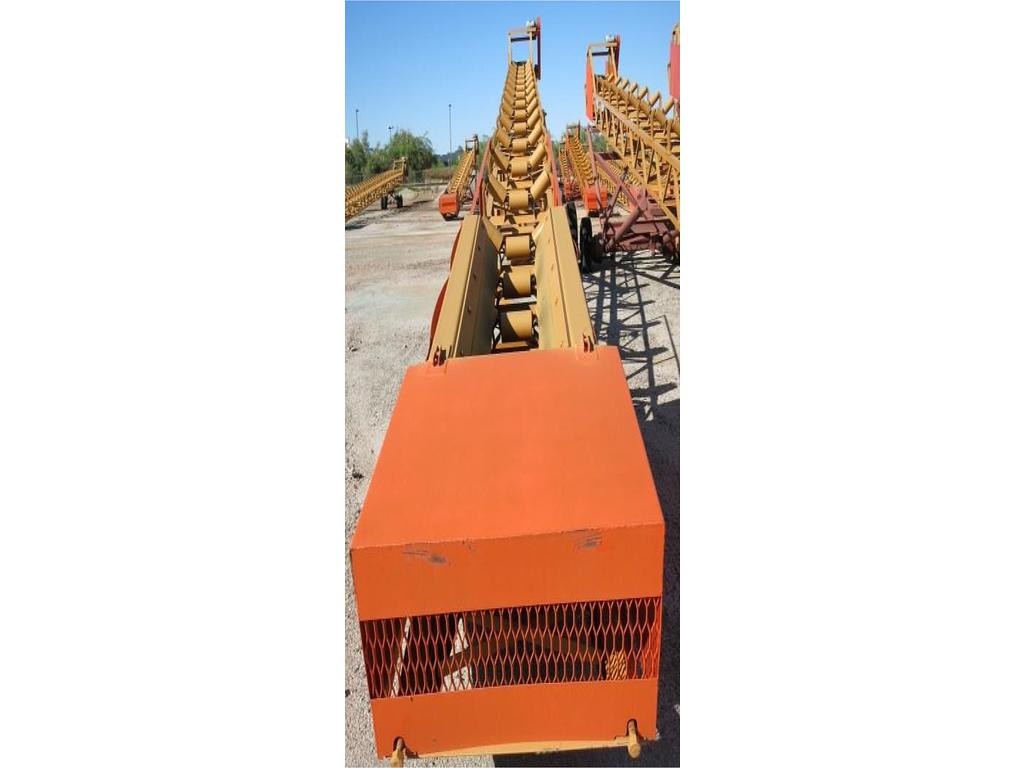

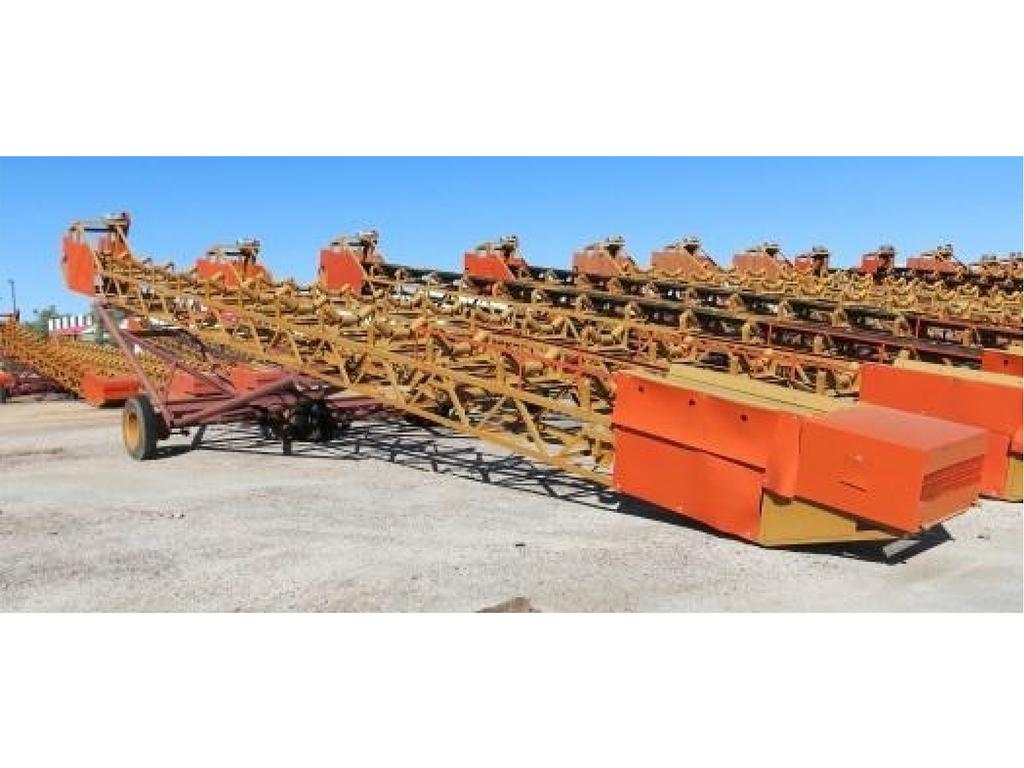

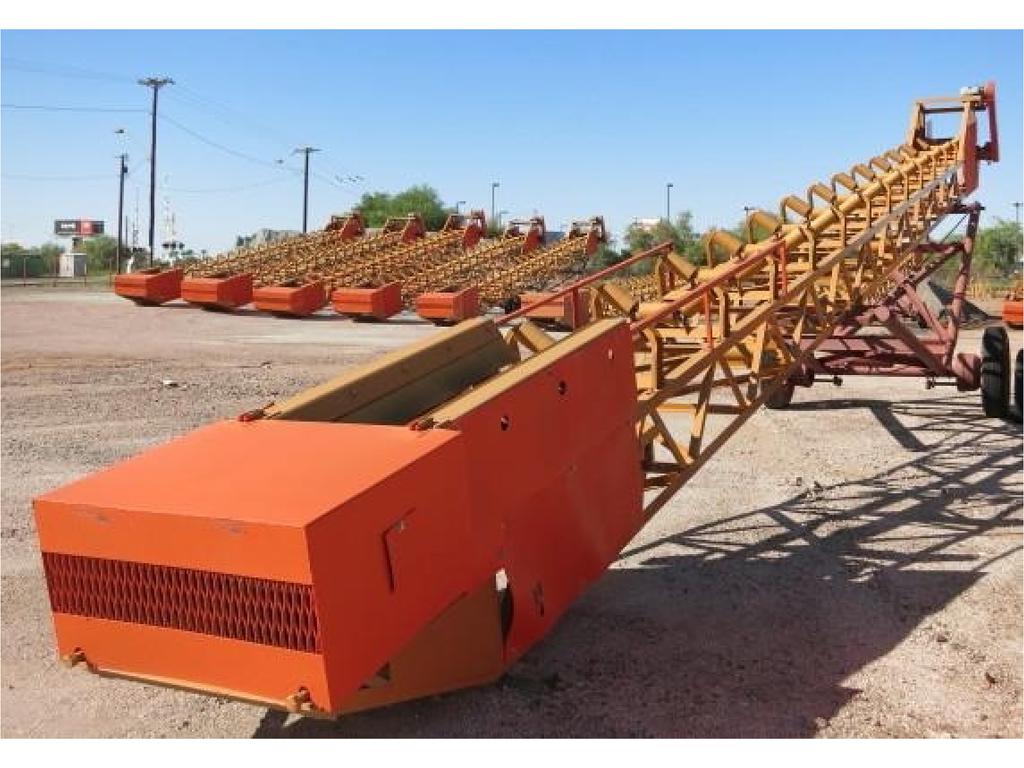

| 24 x 63' portable conveyor specifications: portable straight axle undercarraige. 10 hp electric motor drive with leroy somers 203 shaft mounted speed reducer. 16 lagged directional head pulley with 2 3/16 diameter head shaft. 16 self-cleaning flat bar tail pulley with 2 3/16 diameter tail shaft and adjustable 44 take-ups. 35 x 5 dia. Cema c troughing and return rollers. 24 deep lattice frame construction with 3x3x1/4 chord angles. 6' receiving hopper with 6 rubber flashing. 2-ply belting with 3/16x1/16 covers. Drive, nip, pinch-rail, tail pulley guards. Belt speed approximately 320 fpm. Travel dimensions: 9'5 wide x 63' long x 14' high. F.o.b.: phoenix, az price: $21,200 optional consideration: radial undercarriage add $2,500 boom only - no undercarriage $16,500 |
