2004 CONVEYOR SALES 36X15 Photo Details
|
2004 CONVEYOR SALES 36X15
$27,500.00

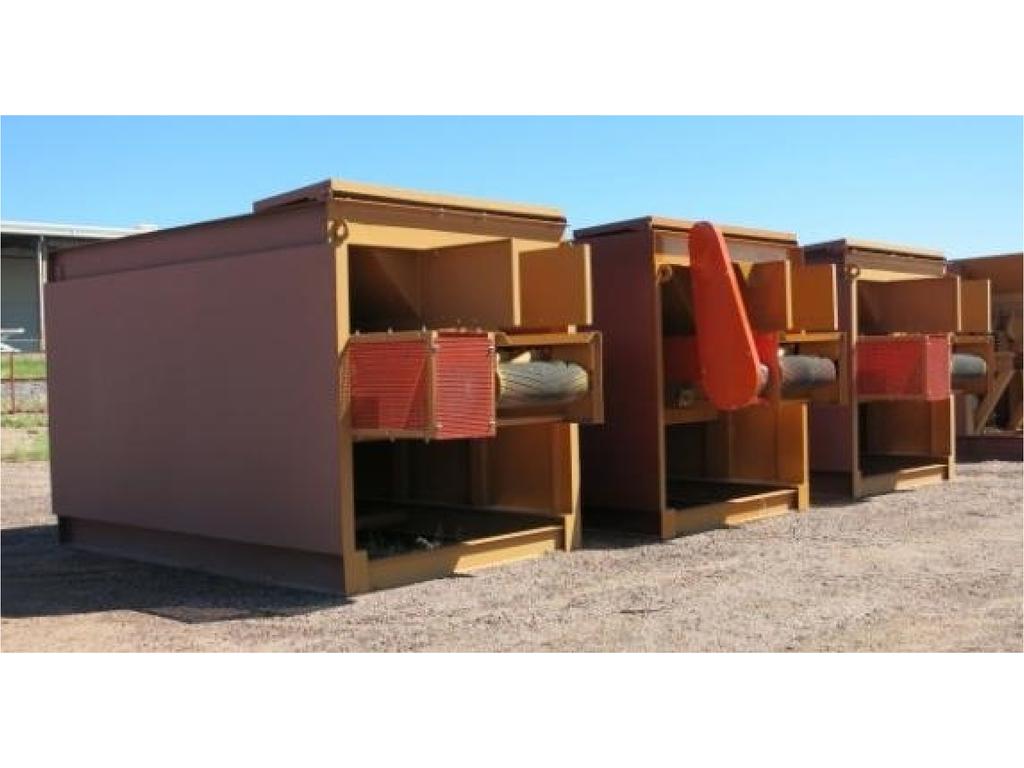

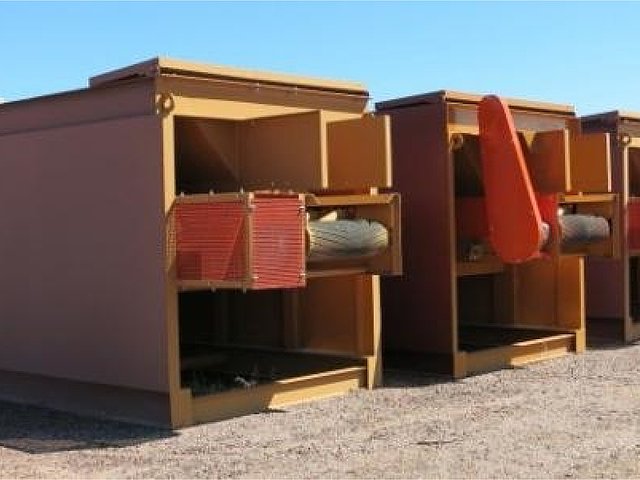

| Unused skid mounted 36 belt feeders with feed hopper specifications: skid mounted csc 36X15' single speed belt feeder with approximate 12 cy feed hopper capacity and pivoting strike off plate. 10 hp worldwide industrial grade motor and leroy somers 203 shaft mount reducer. 13 1/2 lagged head pulley with 2 3/16 diameter head shaft, q1 amec bushings and sealmaster bearings. 13 1/2 self-cleaning flat bar tail pulley with 2 3/16 diameter tail shaft, xtb bushings, sealmaster bearings and adjustable 16 take-ups. 20 x 5 dia. Cema c troughing and return rollers. 10 deep channel frame construction. 12' receiving hopper with 8 rubber flashing. Will be equipped with new 2-ply 3/16x1/16 belting. Drive, nip, pinch-rail, tail pulley guards. Belt speed approximately 150 fpm. Enclosed side skirts on three sides. Dimensions: 8'6 wide x 17'0 long x 9'6 high. F.o.b.: phoenix, az optional consideration: variable frequency drive an additional $3,500 |
