2001 CEDARAPIDS 5048 HSI Photo Details
|
|
2001 CEDARAPIDS 5048 HSI

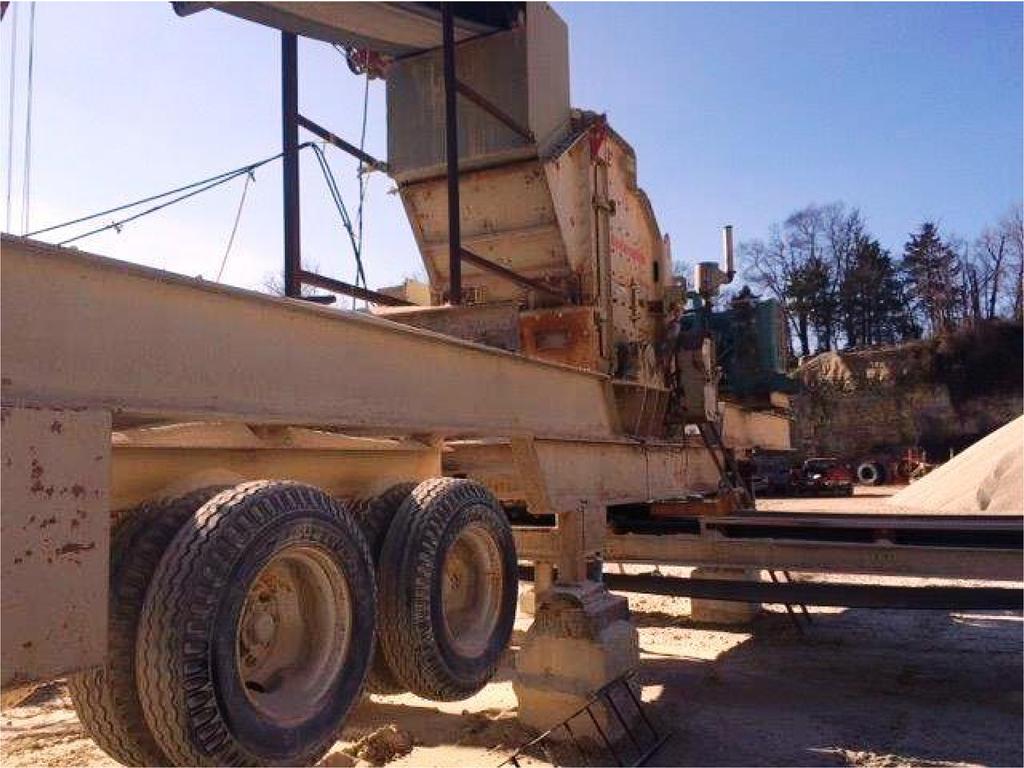

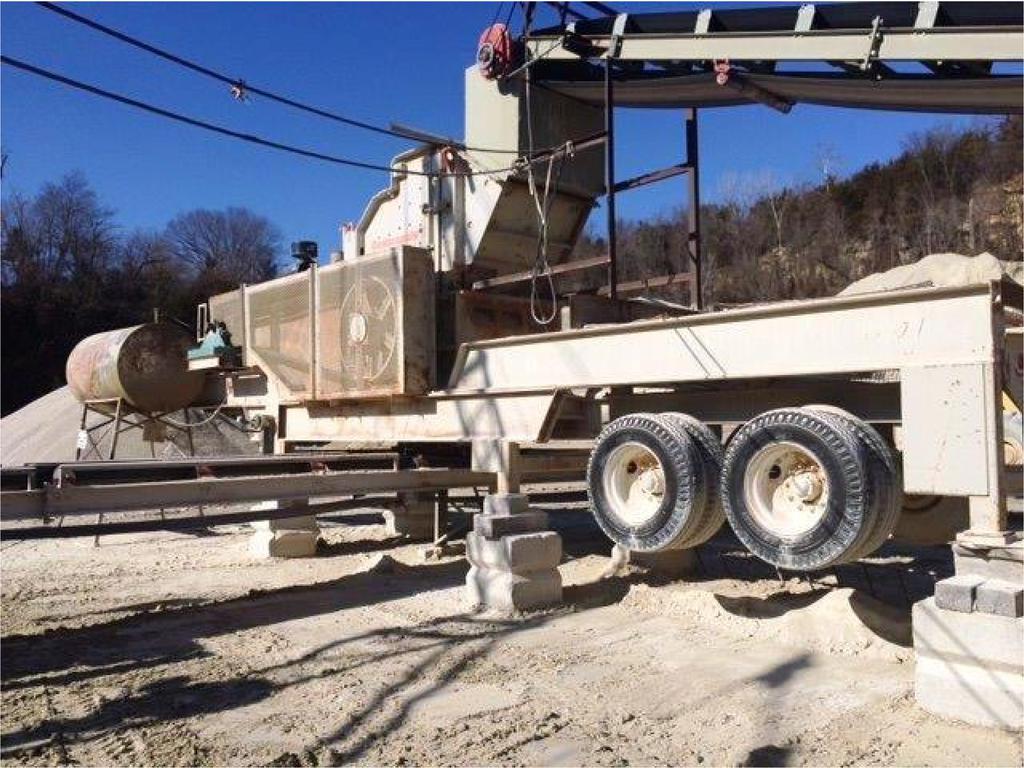

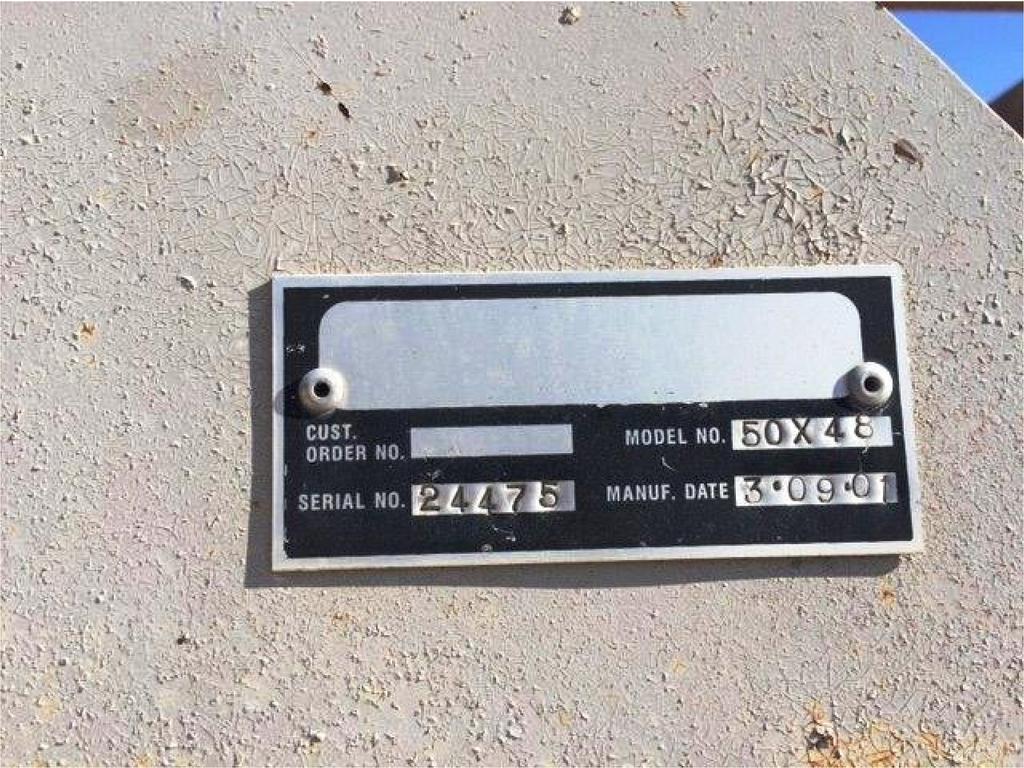

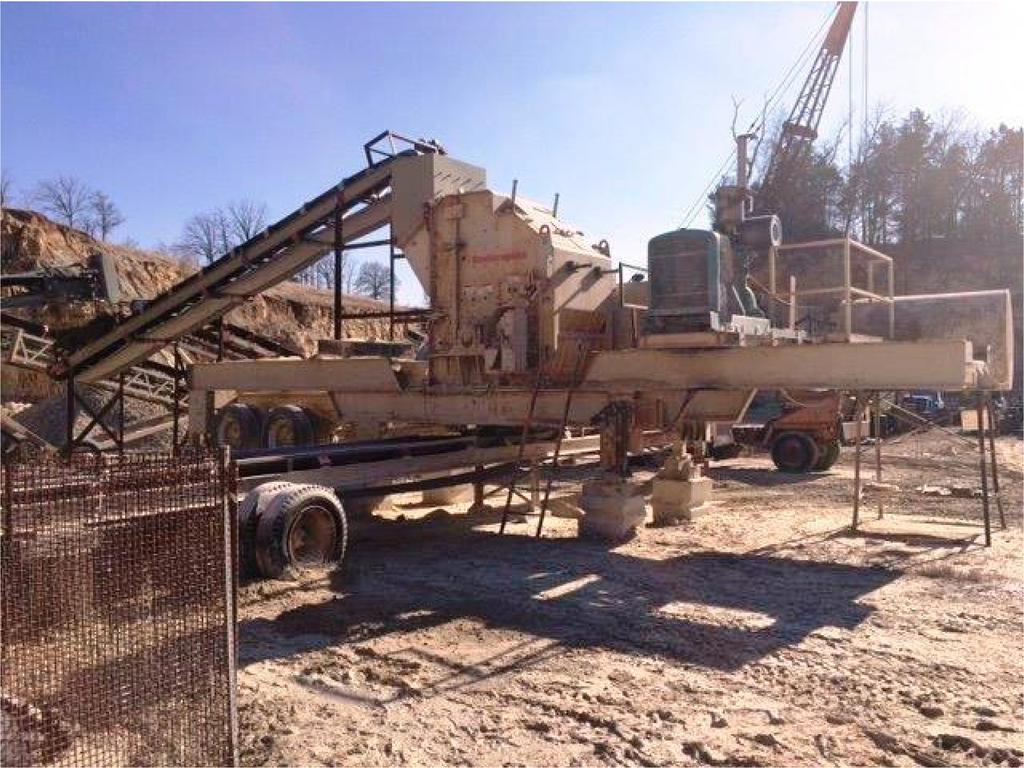

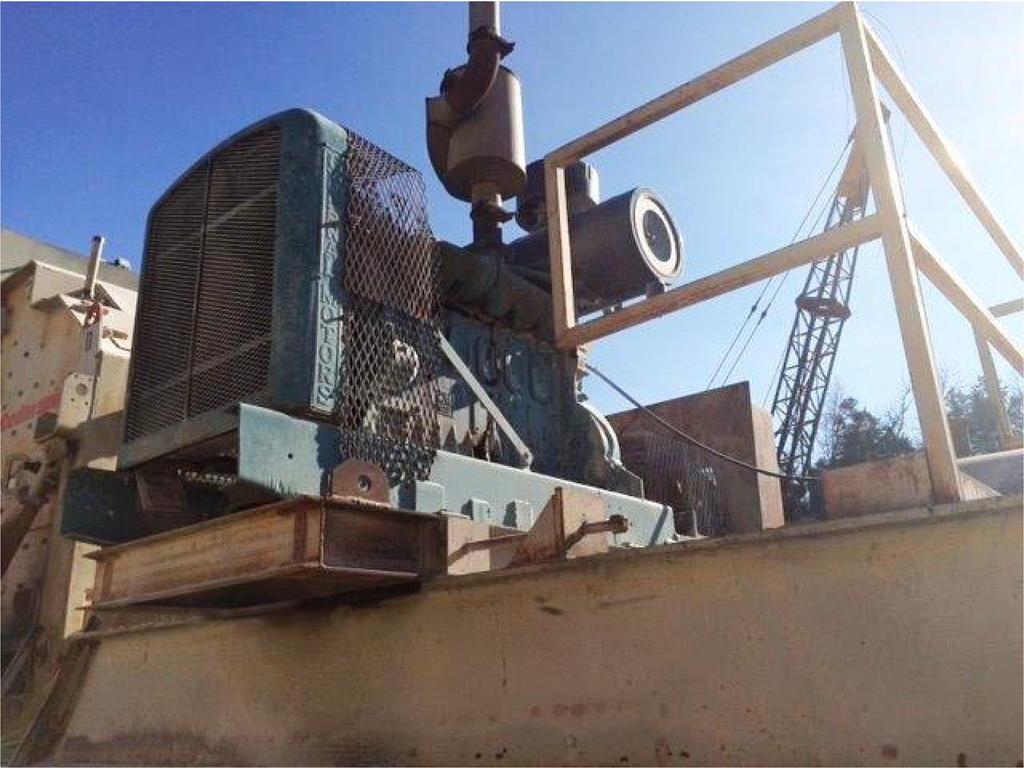

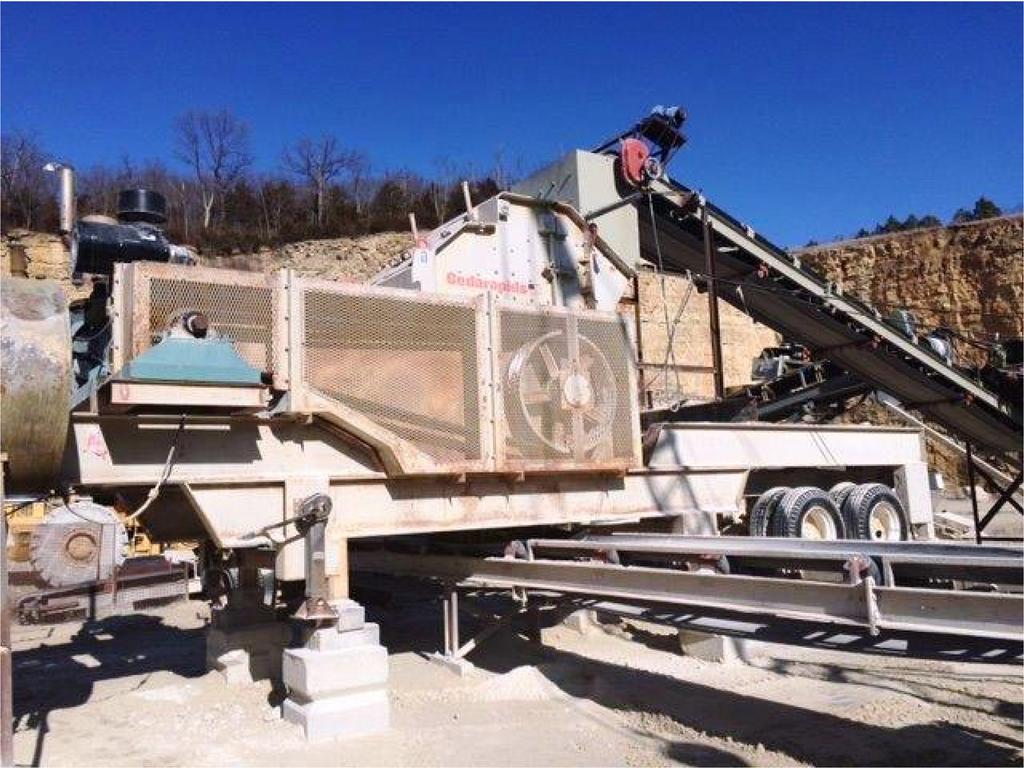

| Description from new invoice as built CEDARAPIDS 5048 horizontal shaft imactor portable plant make up as follows: serial no. 50045 fabricated housing, hydraulic opening, including pump, 5 hp 460/3/60 motor and valve, 3-bar open disk rotor, ar400 side liners (1-1/2 thick),cast manganese primary apron, 15ohrome apron liners (3 thick) on secondary apron,25=hrom impeller bars (4 thick), adj.feed chute:5048 standard lined and 55 deg.feed plate. Powered by: gm-detroit diesel-model-6-71--pta-11413 ----s/n: 5170848 mounted on: peerless portable chassis s/n: 24475 with 2 fully equalized axles, (8) 11r 22.5 14 ply tires, mounted on budd wheels, air brakes on all 2 axles, mud flaps, tail lights, turn signals, landing jacks and cribbing supports, fifth wheel and kingpin plate, motor mount, sheave, v-belt drives, drive guard, under crusher collection hopper, wire brush, cleaned, primed and painted CEDARAPIDS grey, with operator's platform and safety rails and access ladder. |
