1994 CONVEYOR SALES 48X103 Photo Details
|
|
1994 CONVEYOR SALES 48X103
$34,500.00

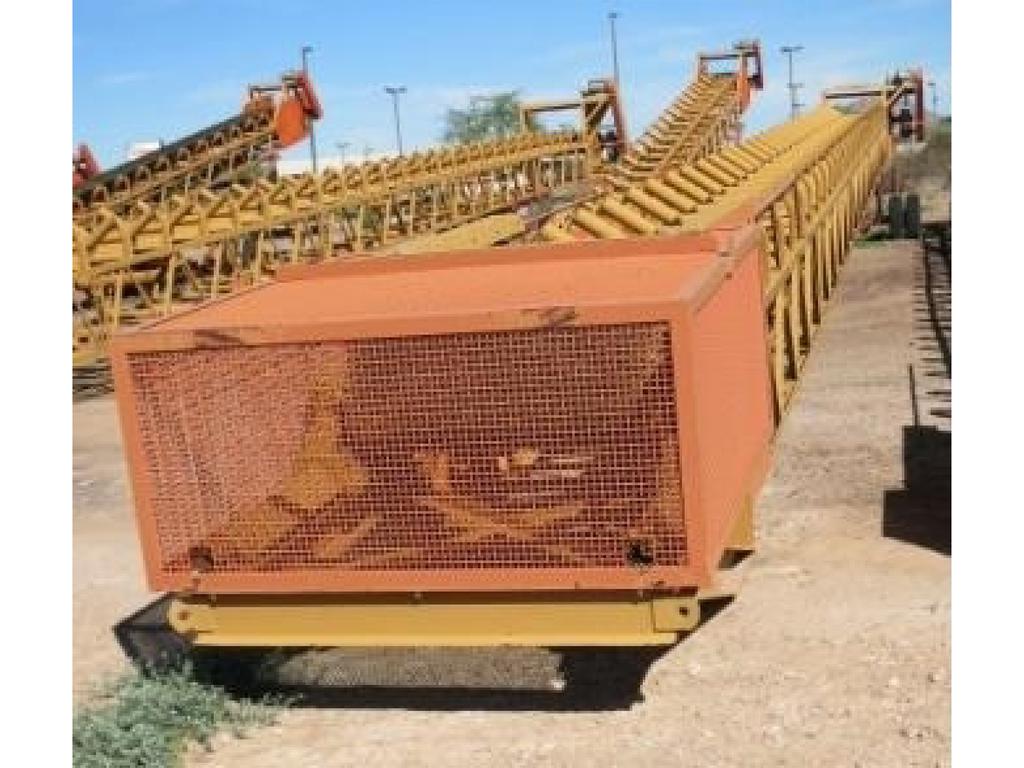

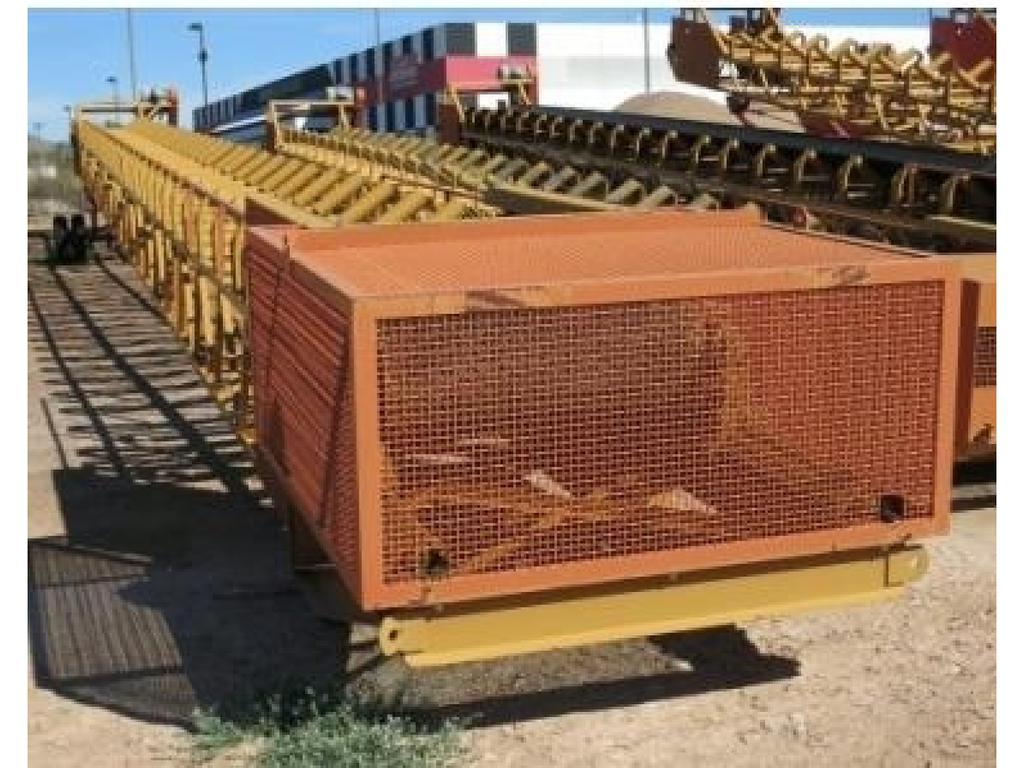

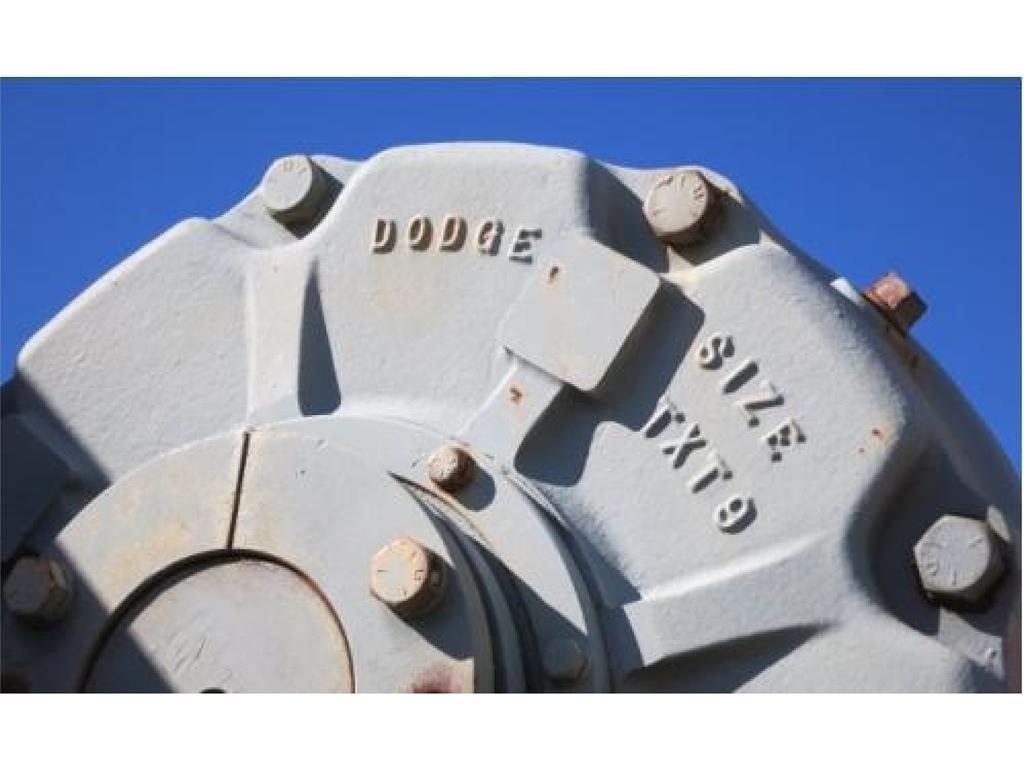

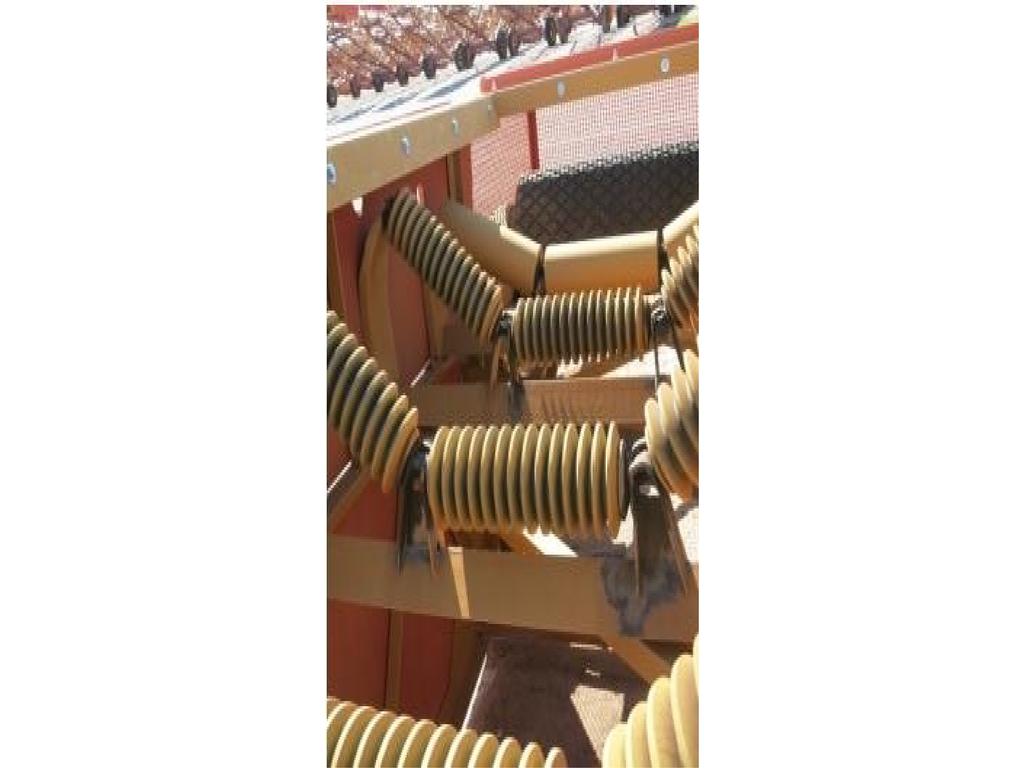

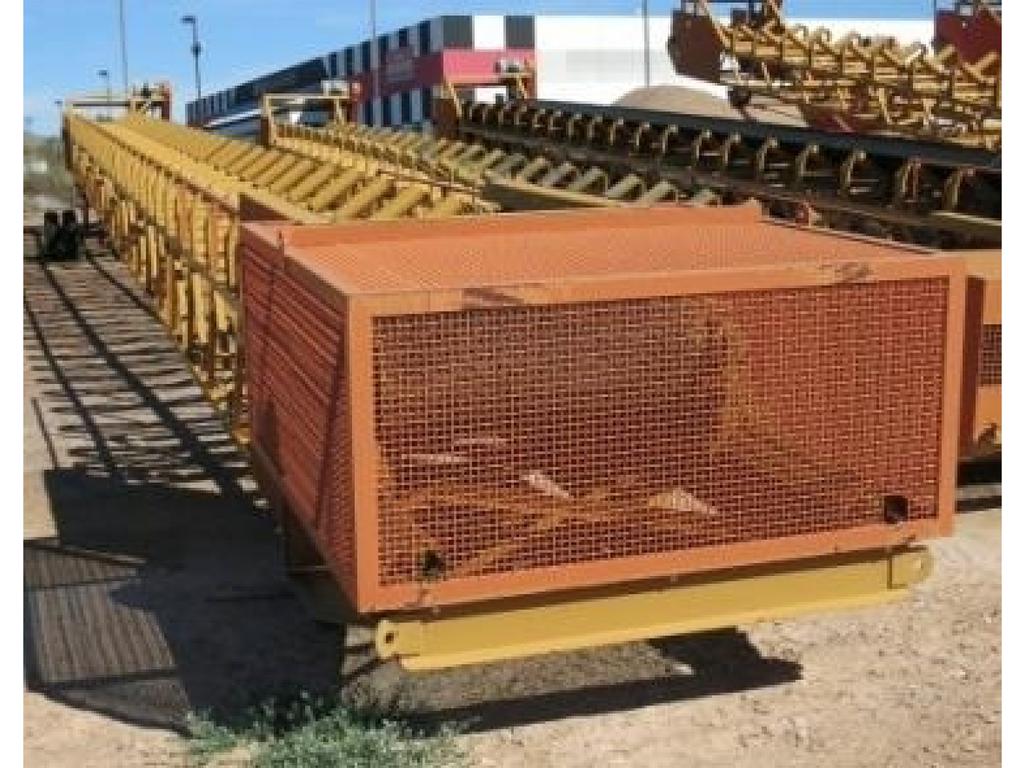

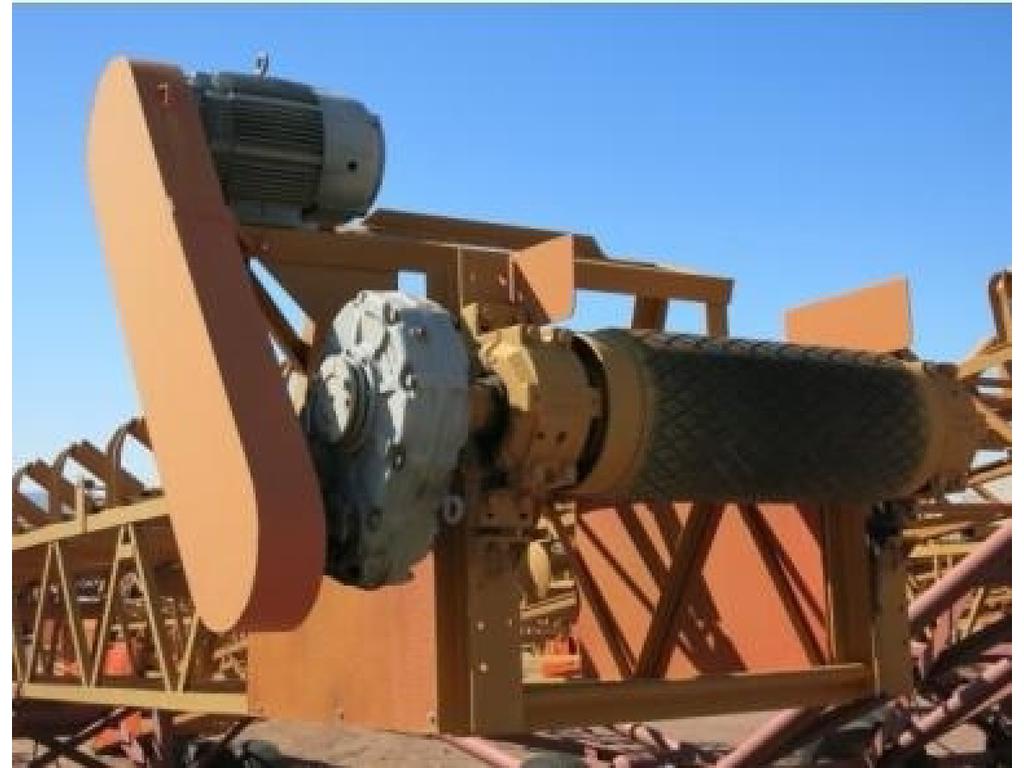

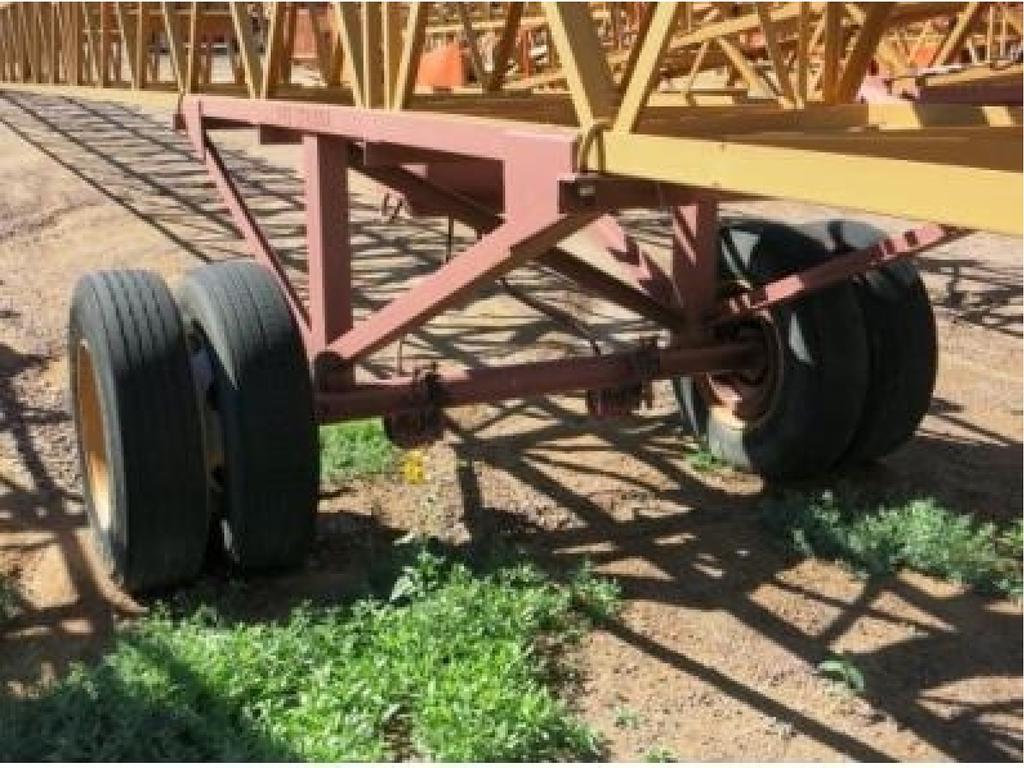

| Portable transfer undercarriage. 50hp electric motor drive with a dodge txt9 shaft mounted speed reducer. 18 lagged head pulley with 2 15/16 diameter head shaft. 18 tail pulley with 2 15/16 diameter tail shaft and adjustable 44 take-ups. 35 x 5 dia. Cema c continental troughing and return rollers. Two return belt guides at tail pulley. Rubber impact idlers in the load zone. New 3-ply belting with 1/4x1/16 covers. 36 deep lattice frame construction with 3x3x1/4 chord angles. 6' receiving hopper with 6 rubber flashing. Drive, nip, pinch-rail, tail pulley guards. Belt speed approximately 320 fpm. Travel dimensions: 9'5 wide x 104' long x 14' high. 5th wheel pin. Id: 9-48-7467. F.o.b.: phoenix, az |
