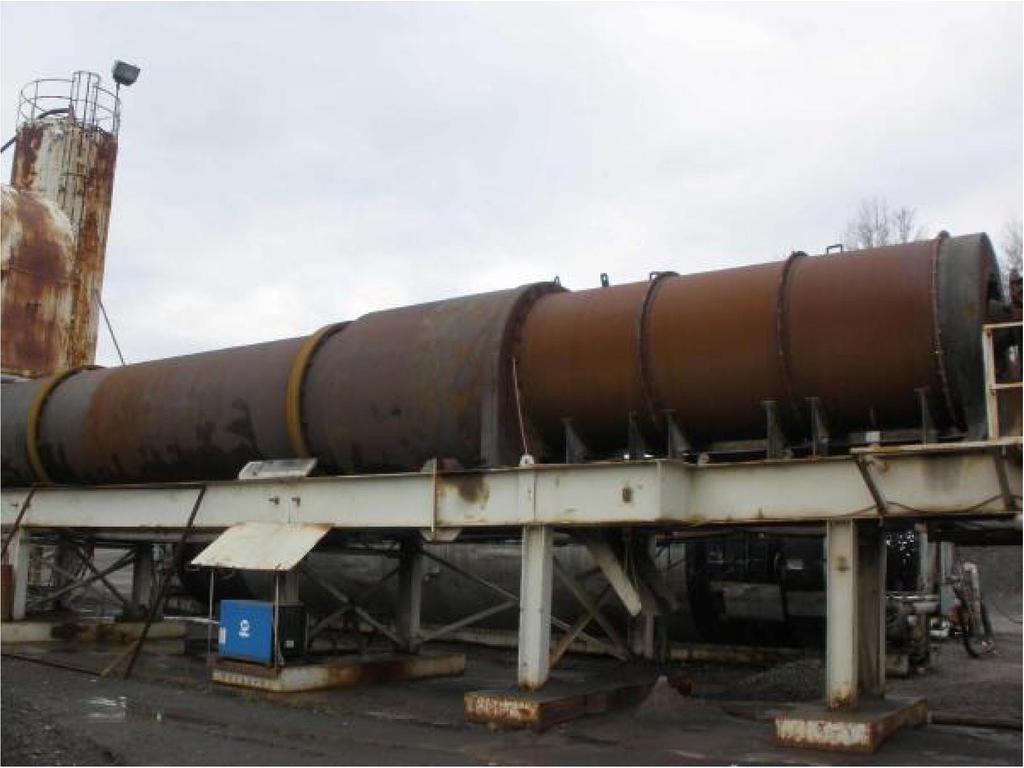

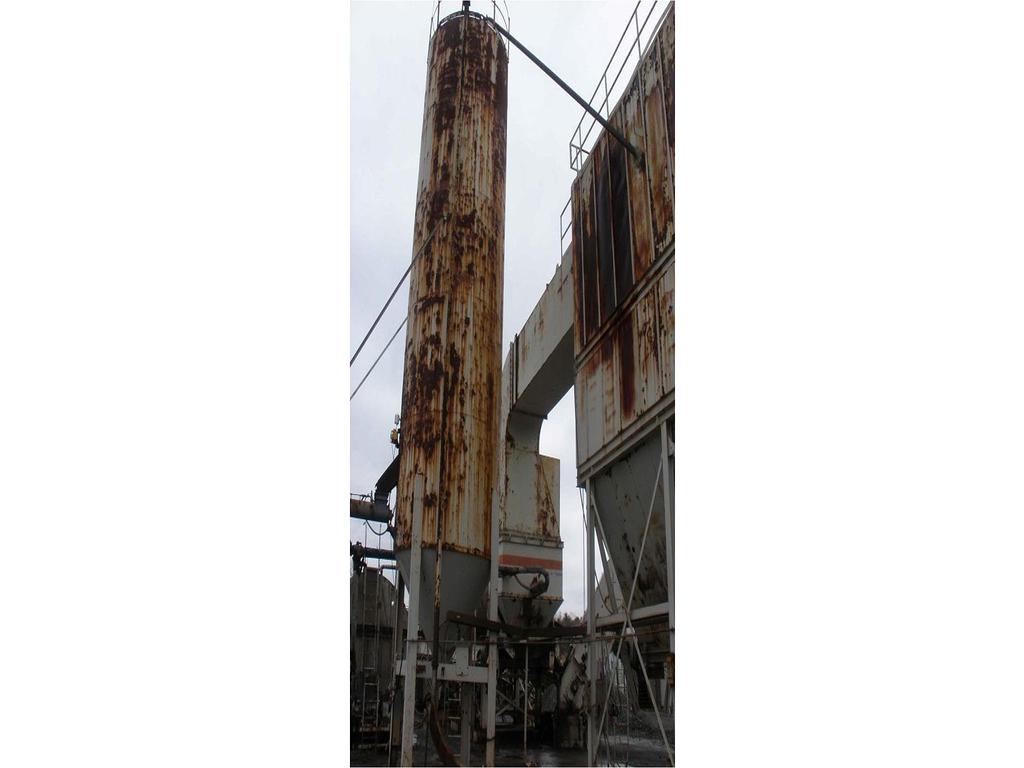

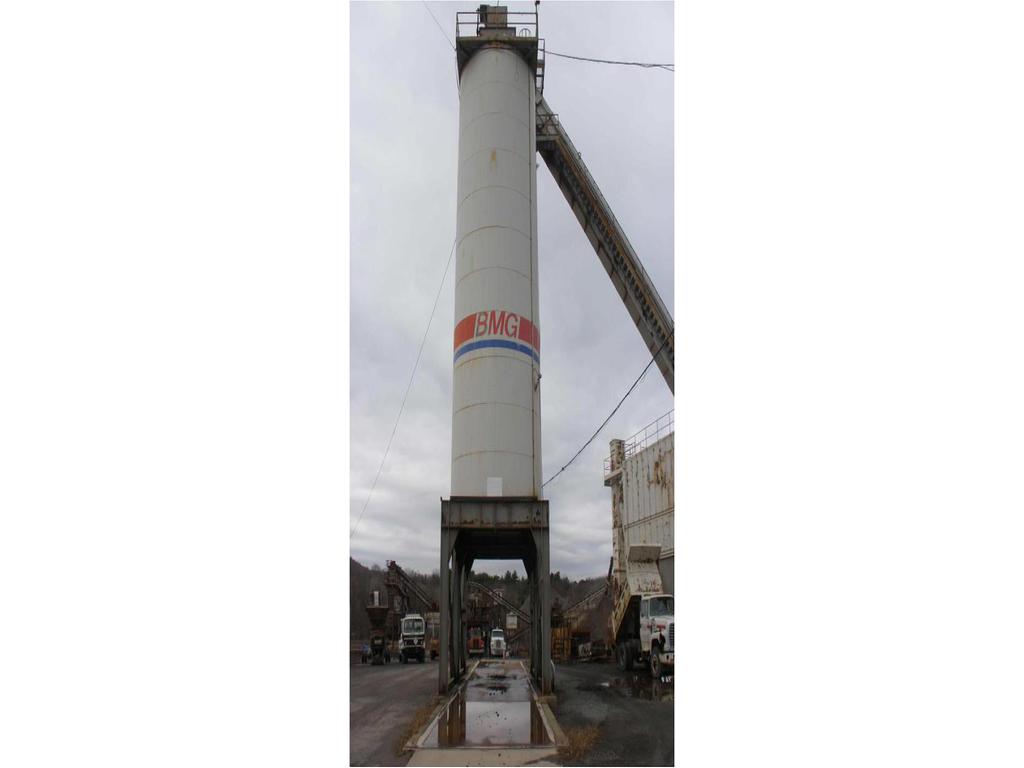

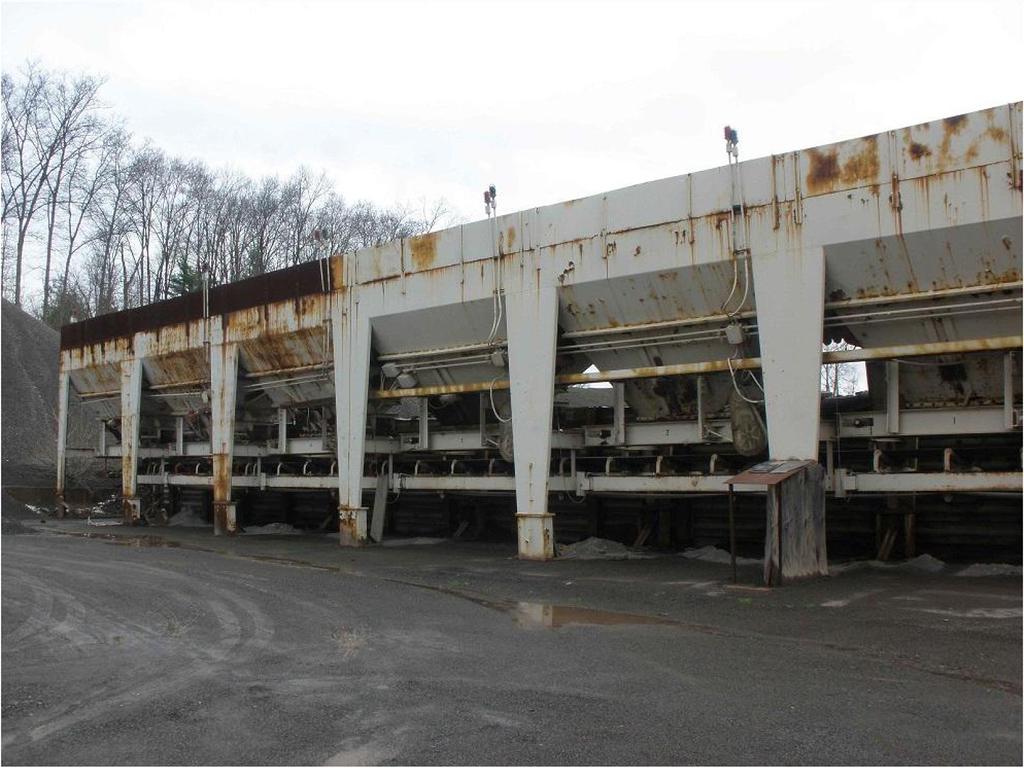

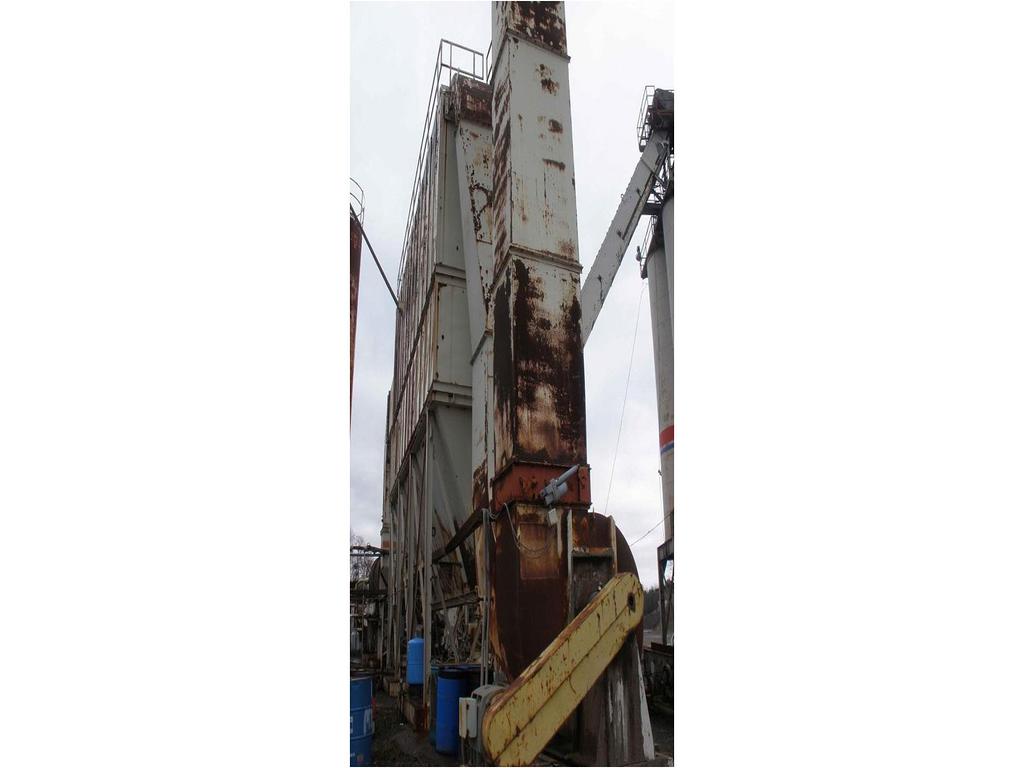

| 1988 BMG drum plant .... Model RM820 incorrect . Cold feed system (5) 10'x14' virgin bins, 24x8' aggregate feeder belts, var. Speed 3hp dc w/ weighbridge .... (1) 10'x14' rap bin, 30x9' aggregate feeder belts, variable speed 5hp dc w/ weighbridge .... 36 x 96 10 collector conveyor, 10 hp (under bins) ... Complete controls conveyor 30 x 45, 5hp, 30 truss, feeds double deck screen . Double deck, 4'x12' vibrating screen, 10hp .... Conveyor, 30x40' with weighbridge, 15 hp, (feeds slinger) .... Conveyor, slinger 24x74', 7.5hp . Burner, hauck starjet sj0520, 96.8million btu, 7300scfm blower, 100 hp . Dryer, parallel flow 7'4x40', (2) 50 hp motors, trunnion driven baghouse, filtering area: 13,199sq.ft / 672 bags, 60k cfm, 5.15air:1cloth, 40hp compressor .. BMG / seltec mn: ad500 plant and silo controls control house 11.5 wide x 27 long x 10 high ... Silo system conveyor, drag slat 36x87', 350tph, 100hp, hot oil heat .... Conveyor, |
